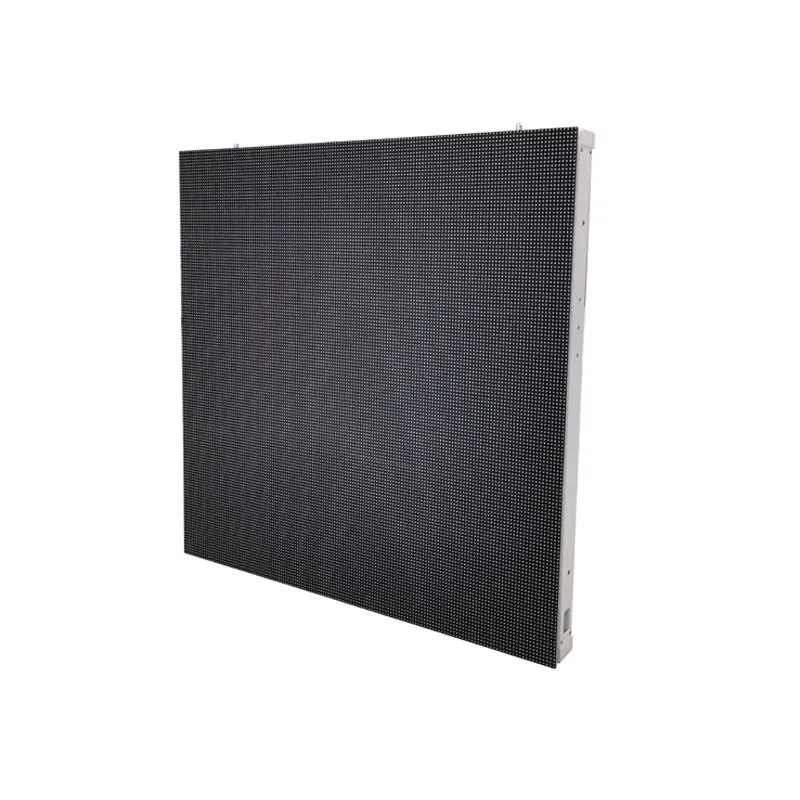

Platinum Series Premium Front Maintenance Outdoor LED Display 960x960
5 years warranty / 7000 -10,000 nits super high brightness / IP66 water-proof
no need ventilation & air conditioning system
Platinum LED Display Leeman IP66 outdoor LED Display Screen is new genration of outdoor fix installation LED display. High brightness 7000-9000 nits, 150w per square meter average power consumption, no need any ventilation or aircondition system
5 years warranty

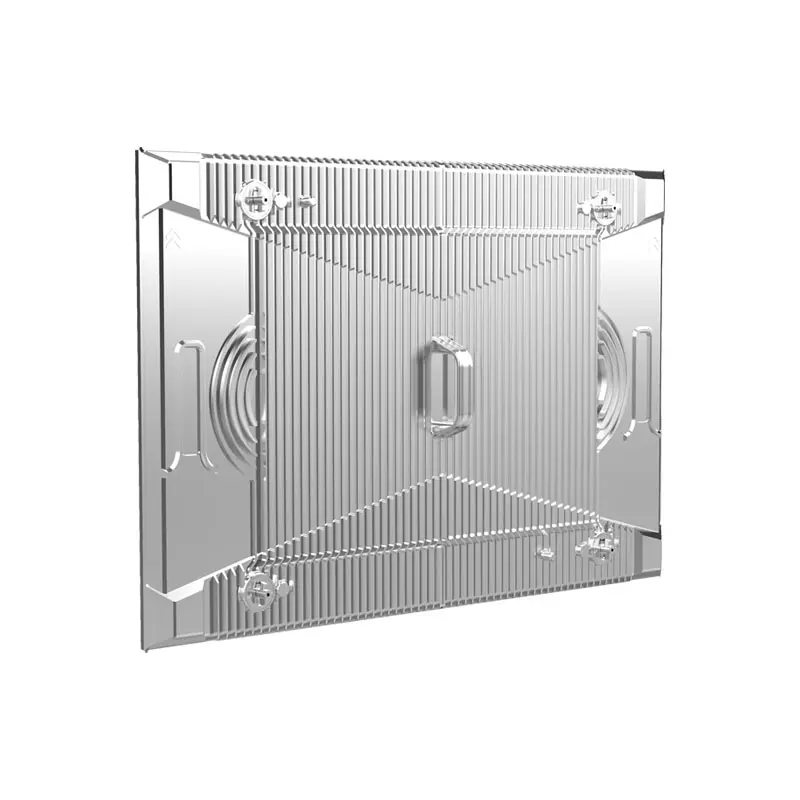

Outdoor Fixed Screen suppliers and factory,Custom Platinum Series Outdoor Fixed DOOH LED Display Aluminum die-casting LED module housing for IP68 rating protection and natural cooling without any ventilation and aircon
7000 – 10,000 nits high brightness,1:5000 contrast ratio
average 120-150W energy-saving power consumption
IP66 front and back high protection cabinet
Super light weight die-casting magnesium cabinet, 28-32kg per cabinet
Water-proof protection of power supply and receiving card inside the cabinet
Heat resistant,fireproof, insulation of cables

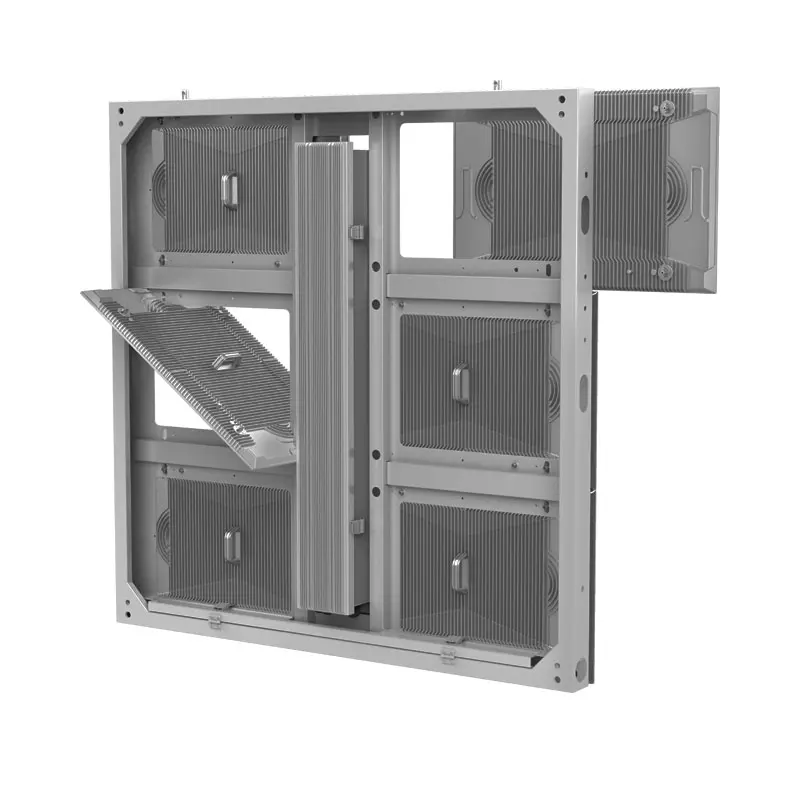

IP66 front and back high protection cabinet

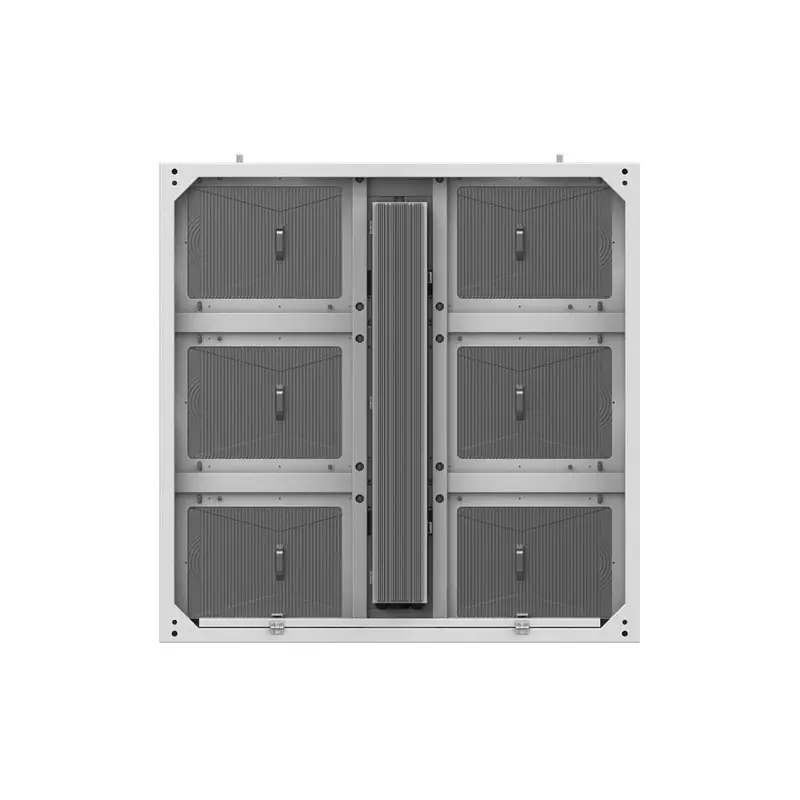

Super light weight die-casting magnesium cabinet, 28-32kg per cabinet
Specification
| Pixel Matrix Per SQM | 22500 | 15625 | 10000 |
| Pixel Configuration | SMD 2727 | SMD3535 | SMD3535 |
| Power Con.(Max/Avg) | 550/200 w/sq.m | 550/190 w/sq.m | 550/190 w/sq.m |
| 480mm x 320mm | 480mm x 320mmv | 480mm x 320mm | |
| Modules Resolution | 72 x 48 | 60 x 40 | 48 x 32 |
| 960mm x 960mm x 75mm(W x H x D) | 960mm x 960mm x 75mm(W x H x D) | 960mm x 960mm x 75mm(W x H x D) | |
| Cabinet Resolution | 144 x 144 | 120 x 120 | 96 x96 |
| Cabinets Weight(kg) | 28kg /61.72lbs | 28kg /61.72lbs | 28kg /61.72lbs |
| Serivice Access | Front & Rear | ||
| Gray Scale(bit) | 16 | ||
| IP Rate | IP66 | ||
| Input Voltage(AC) | 110V / 240V 50/60 HZ | ||
| Lifespan(hrs) | >100,000(hrs) |
