Outdoor SMD Full Color LED Display Screen 960x960

SMD Outdoor LED Display P1.9, P2.5, P2.6, P3, P3.076, P3.33, P4, P5, P6, P6.67, P8, P10

10,000nits

Energy Saving

IP65

High Contrast

High Resolution

Wide Viewing Angle (160°)

1920Hz ~ 3840Hz

3 Layers Coating Protection

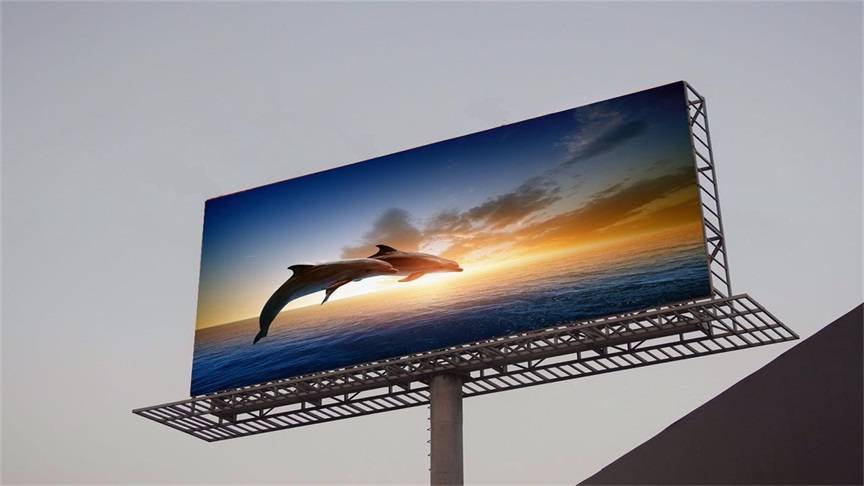

P10 SMD Outdoor LED Display High Brightness

High quality LED brings brightness up to 10,000nits. The pixel pitches are P1.9, P2.6, P2.9, P3, P4, P5, P6, P8, and P10.

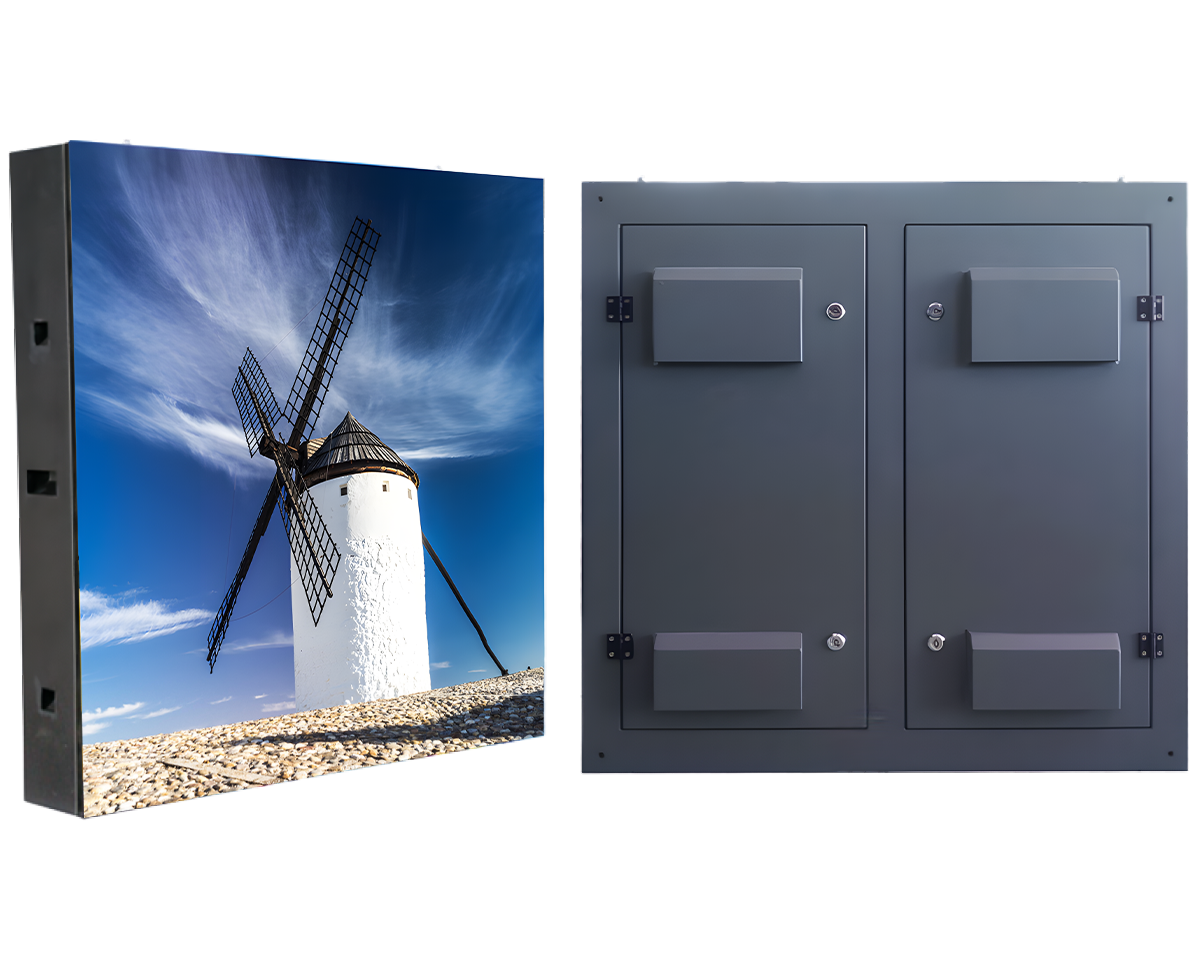

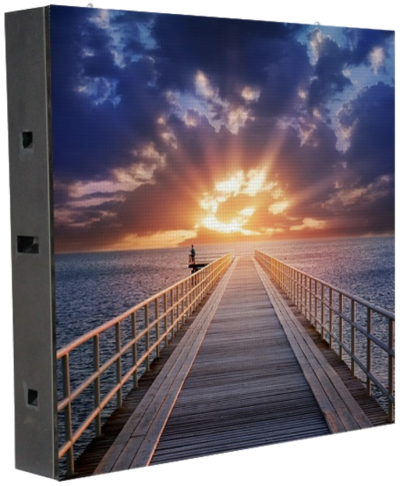

960×960 Outdoor LED Display Die Cast Aluminum Cabinet High Resolution

Fine pixel pitches form high resolution which can capture and hold the attention of passersby.

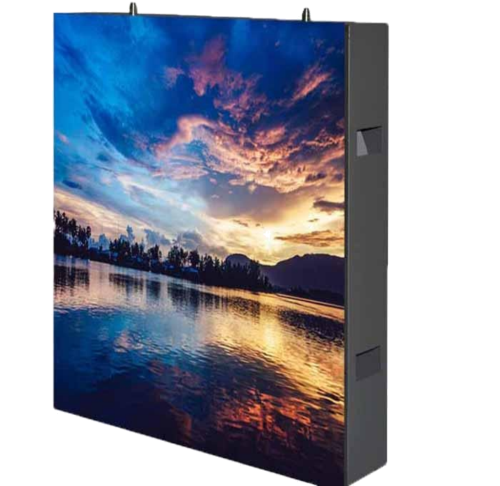

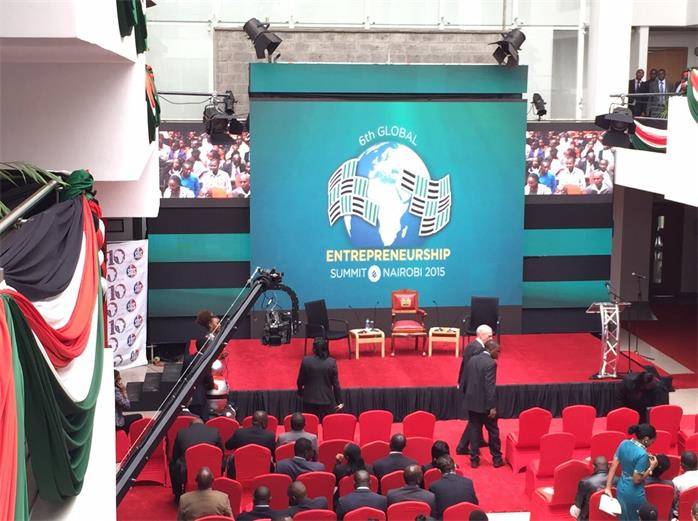

P10 960x960mm Outdoor Iron Cabinet Video Wall Advertising Full Color led Display Stage Video Wall Energy Saving

We use customized PCB and power supply, so average power consumption is less than 150W/㎡. Compared with the similar products in the market, LeemanDisplay Outdoor series LED display saves 20% energy.

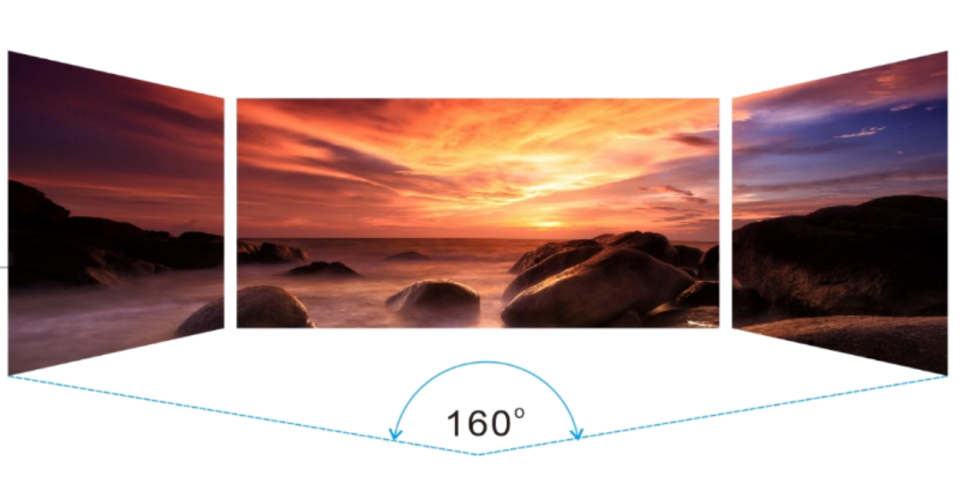

960×960 P10 Outdoor Led Display Ultra-wide Viewing Angle

With 160°wide viewing angle, the screen can be seen from as various positions as possible.

Outdoor 960 X 960 Mm Led Panel P4 P5 P6 P8 P10 Outdoor Led Screen Sign Digital Led Billboards Three Layers Coating Protection

Three layers high quality conformal coating protects the driving IC and other electron components from dust and humidity.

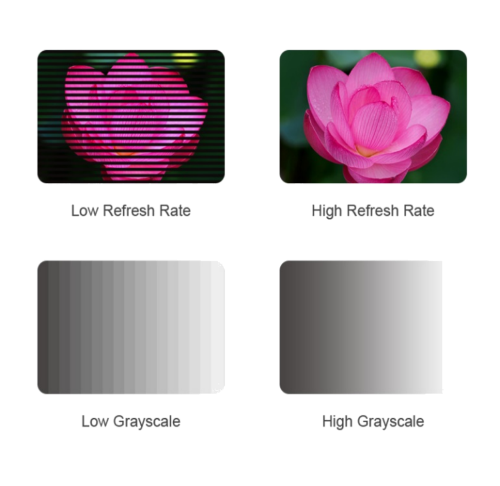

Outdoor LED Display P6mm 960 X 960 LED Display High Definition Video LED Panel Manufacturer High Refresh Rate

3840Hz refresh rate for high dynamic range pictures eliminates scan lines and flicker on the display at the moment we capture the display. High grayscale ensures the premium vision and the LED display has vivid visual performance.

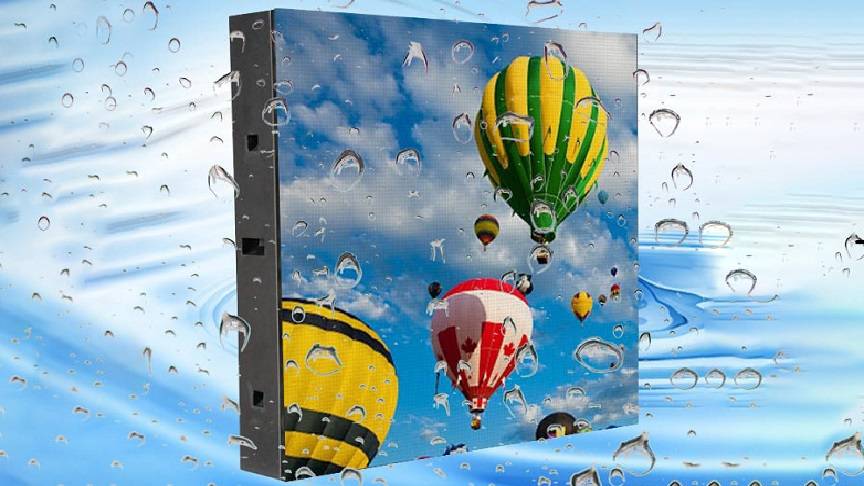

P5 Outdoor 960X960 Multifunction LED Display IP65 Grade Protection

IP65 ensures stable operation of the screen even in extreme weather as below: high temperature, low temperature and high humidity.

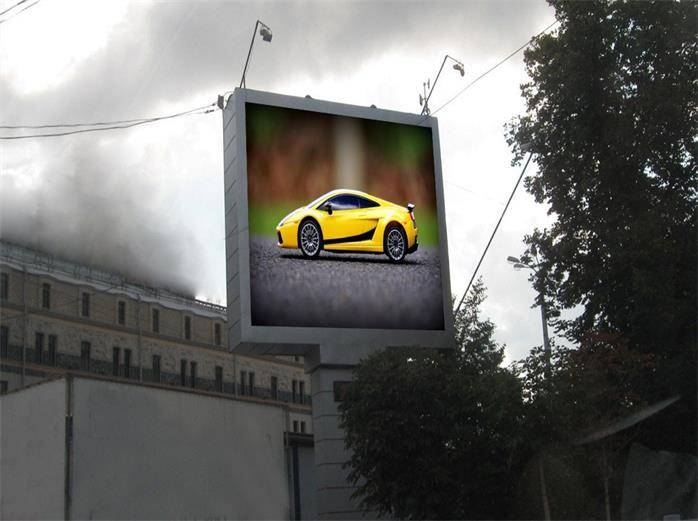

P5 960×960 Outdoor Die-cast LED Screen High Contrast

High Contrast : The contrast ratio of the LED screen gives a sharp image quality

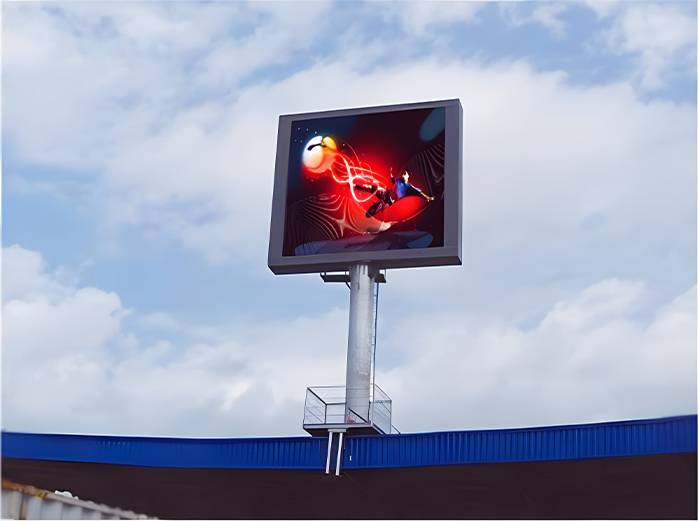

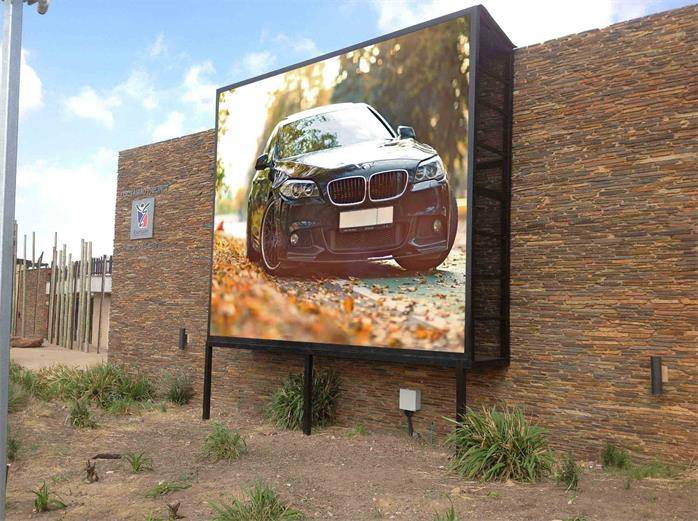

Outdoor LED Display P6mm 960 X 960 LED Display High Definition Video LED Panel Digital Led Billboards Application Fields

This product is usually used in: Outdoor Advertising; Digital Out of Home(DOOH); Truck.

Parameter

Item	P1.9	P2.5	P2.6	P2.9
Pixel Pitch	1.953mm	2.50mm	2.604mm	2.976mm
LED Type	SMD1212	SMD1415	SMD1415	SMD1415
Module Resolution	128dots × 128dots	128dots x 64dots	96dots × 96dots	84dots × 84dots
Driving Mode	1/32scan	1/16scan	1/16scan	1/14scan
Module Pixels	16,384dots	8,192dots	9,216dots	7,056dots
Module Size	250mm × 250mm	320mmx160mm	250mm × 250mm	250mm × 250mm
Cabinet Size	500mm × 500mm	960mmx960mm	500mm × 500mm	500mm × 500mm
Cabinet Resolution	256dots × 256dots	384dotsx384dots	192dots × 192dots	168dots × 168dots
Pixel Density	262,144dots/㎡	160,000dots/㎡	147,456dots/㎡	112,896dots/㎡
Minimum Viewing Distance	≥1.9m	≥2.5m	≥2.6m	≥2.9 m
Brightness	4,000nits (Black)	4,500nits(Black)	4,000nits (Black)	4,000nits (Black)
IP Grade	IP65	IP65	IP65	IP65
Refresh Rate	1,920Hz～3,840Hz	3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	13 bits～24bits	13 bits～24bits	13 bits～24bits	13 bits～24bits
Viewing Angle	H:160° / V:160°	H:170° / V:120°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	800W/㎡	1000W/㎡	800W/㎡	800W/㎡
Average Power Consumption	230W/㎡	240W/㎡	230W/㎡	230W/㎡
Input Voltage	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～60℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	30kg/㎡	30kg/㎡	30kg/㎡	30kg/㎡
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
