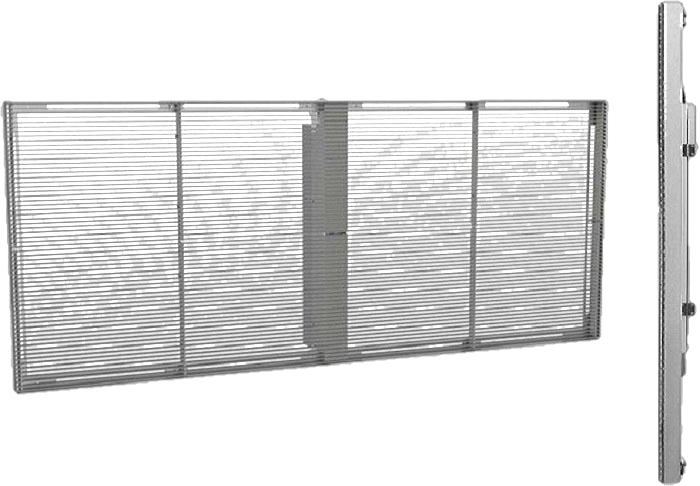

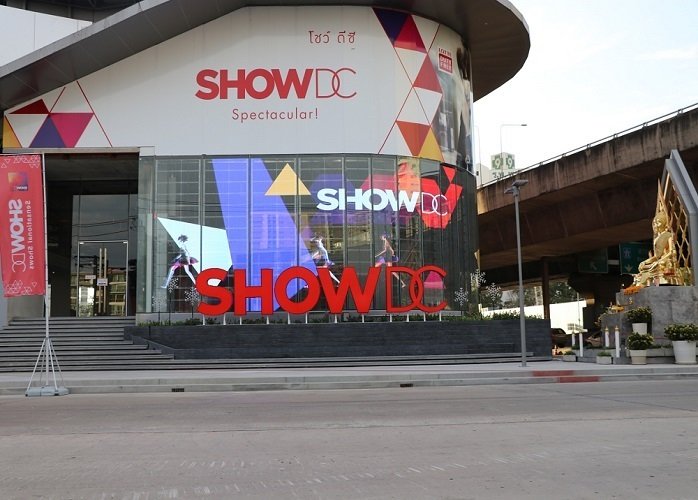

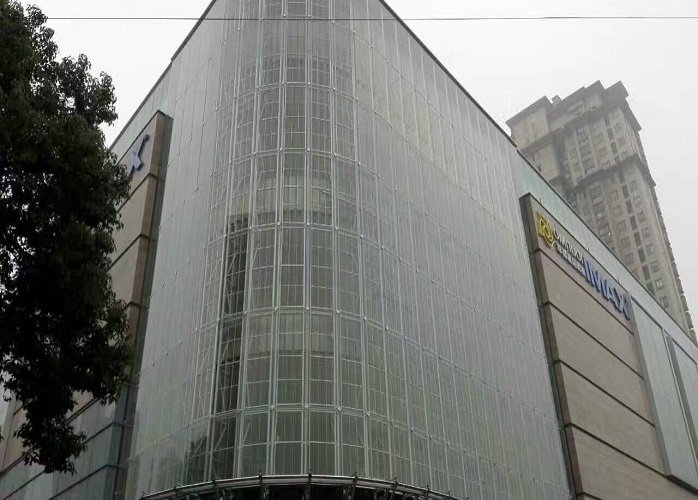

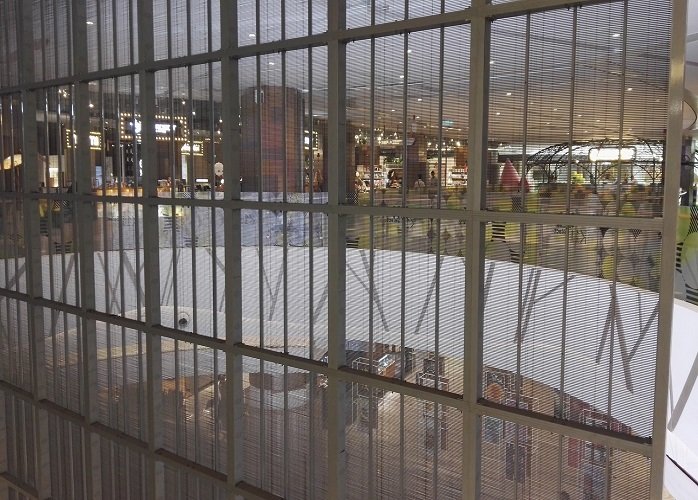

Curtain LED display is one of the modes of using LED displays for commercial outdoor advertising. Our transparent led curtain display is ideal solution for large-screen outdoor installations, especially glass facades of building. Here we provide high quality translucent curtain LED screen with different pixel pitch from P1.9 – P10.
Item | P1.9 | P2.8 | P3.9 |
---|---|---|---|
Pixel Pitch | 1.953mm (W) / 3.906mm (H) | 2.841mm (W) / 5.681mm (H) | 3.91mm (W) / 7.81mm (H) |
LED Type | SMD1415 | SMD1921 | SMD1921 |
Module Resolution | 256dots × 32dots | 176dots × 22dots | 128dots × 16dots |
Driving Mode | 1/14scan | 1/11scan | 1/8scan |
Module Pixels | 8,192dots | 3,872dots | 2,048dots |
Module Size | 500mm × 125mm | 500mm × 125mm | 500mm × 125mm |
Cabinet Size | 1,000mm × 500mm | 1,000mm × 500mm | 1,000mm × 500mm |
Cabinet Resolution | 512dots × 128dots | 352dots × 88dots | 256dots× 64dots |
Pixel Density | 131,072dots/㎡ | 61,951dots/㎡ | 32,768dots/㎡ |
Minimum Viewing Distance | ≥1.9 m | ≥2.8 m | ≥3.9 m |
Transparency | 61% | 63% | 73% |
Brightness | ≥1,500nits~3,000nits | ≥5,000nits | ≥5,000nits |
IP Grade | IP43 | IP43 | IP43 |
Refresh Rate | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz |
Gray Scale | 13bits~24bits | 13bits~24bits | 13bits~24bits |
Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
Maximum Power Consumption | 800W/㎡ | 800W/㎡ | 800W/㎡ |
Average Power Consumption | 230W/㎡ | 230W/㎡ | 230W/㎡ |
Input Voltage | AC110V~AC220V @ 50Hz / 60Hz | AC110V~AC220V @ 50Hz / 60Hz | AC110V~AC220V @ 50Hz / 60Hz |
Operating Temperature | ﹣20℃~65℃ | ﹣20℃~65℃ | ﹣20℃~65℃ |
Operating Humidity | 10%~90% | 10%~90% | 10%~90% |
Cabinet Material | Â Aluminum | Â Aluminum | Â Aluminum |
Cabinet Weight | 4.3kg/panel | 4.3kg/panel | 4.3kg/panel |
Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
