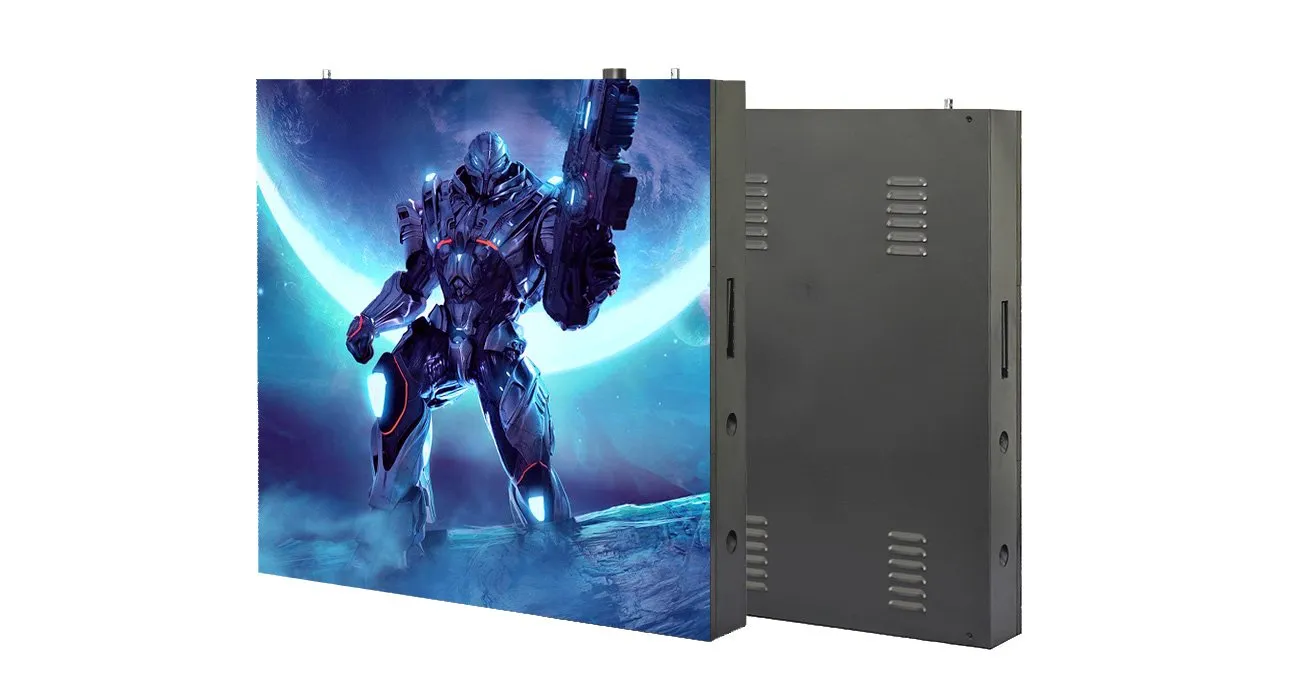

Outdoor 960x960 Front Service LED Display
The SMD Encapsulation technology with high brightness makes the Leeman LED Outdoor Fixed LED display
has a Vivid and smoother pictures when in use.

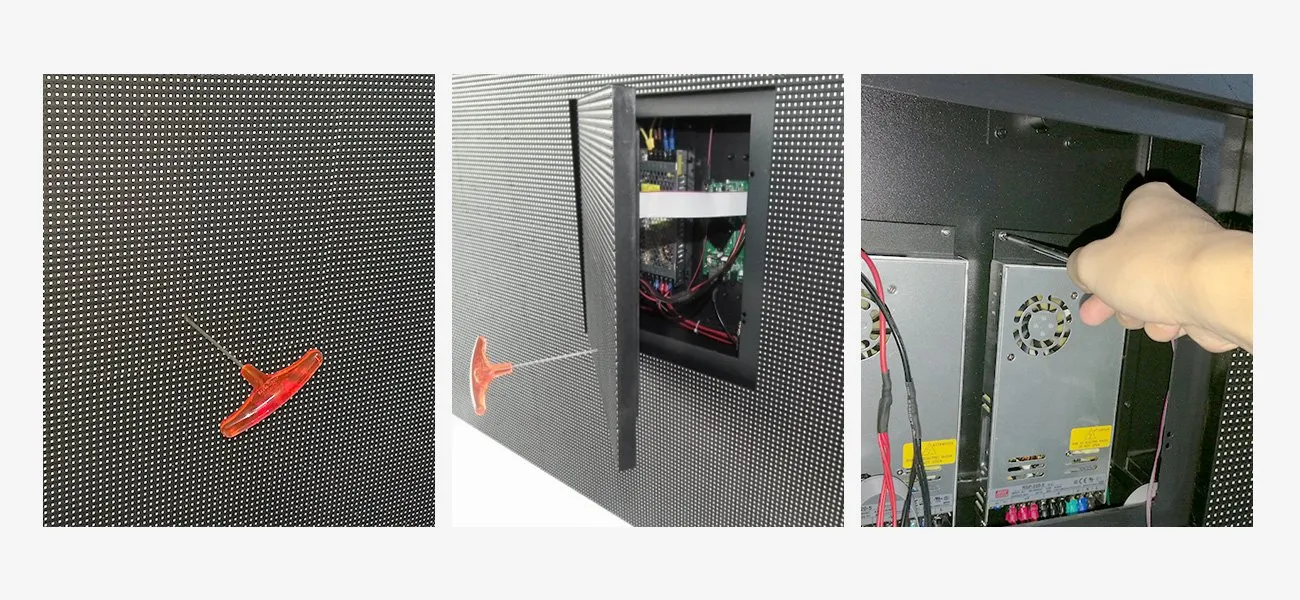

Full Front Outdoor Maintenance

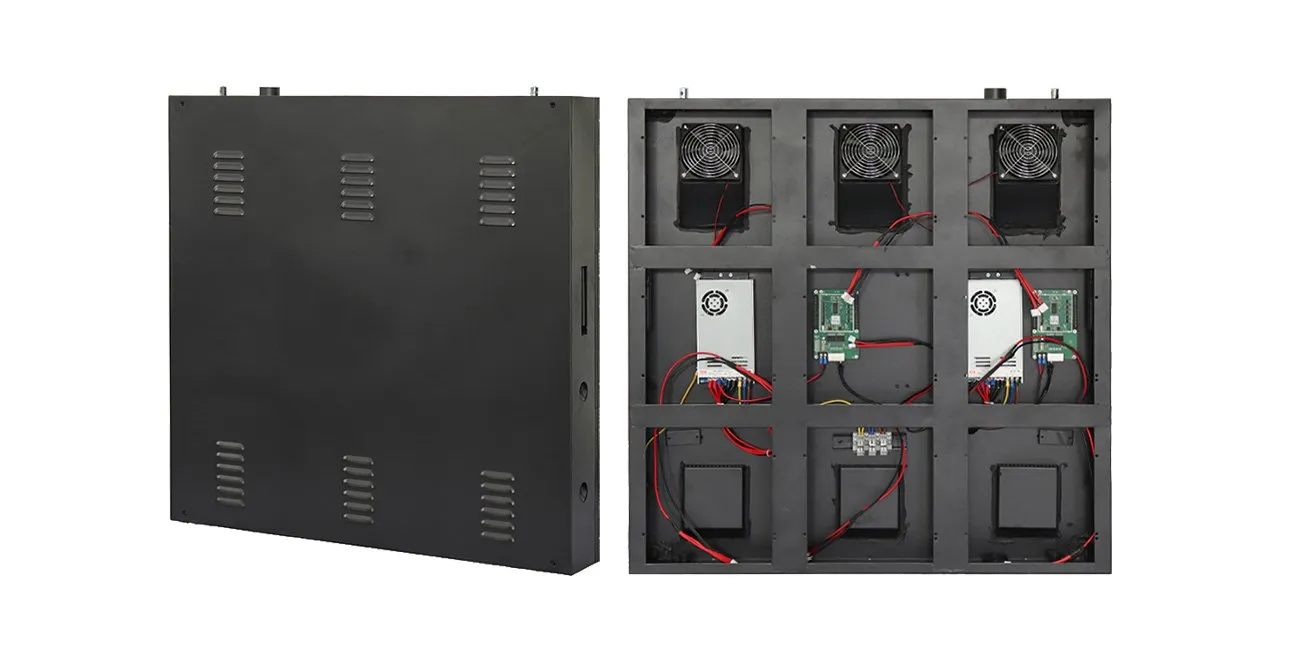

Outdoor 960×960 Front Service LED Display modules 320x320mm, meanwell power supplies, novastar receiver cards, hub cards, and cables are all served at the front end.
High Efficieny Cooling
There are 3 aerofoil fans in each cabinet to make LEEMAN Outdoor Fixed LED display cooling immediately.
entilation volume is 6.6 cubic meter per minute,air circulation 25 times every minute inside the cabinet

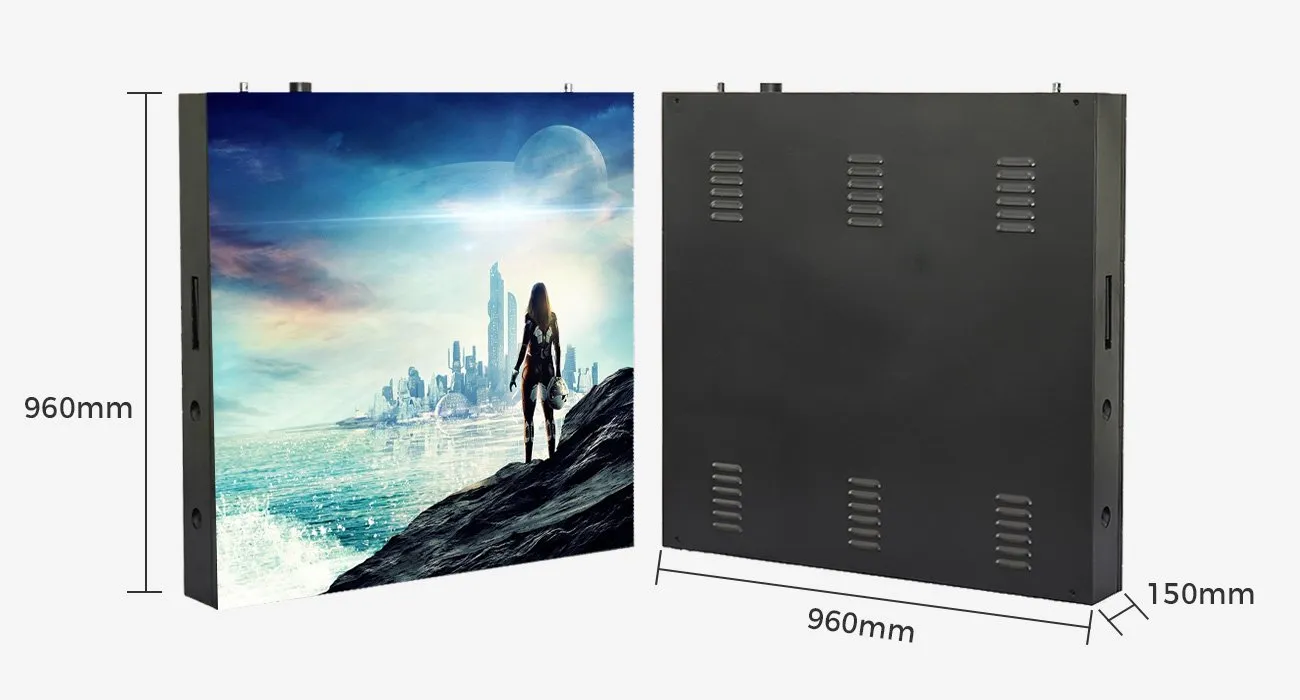

960x960mm Standard Size
The outdoor maintenance 960×960 series LED cabinet weighs only 40kg and has a thickness of only 150mm.The cabinet is made of aluminum alloy,
which makes it have higher strength. The compact design of the LED display cabinet makes it very easy to install.
In addition, the Quick Lock feature does not require any technical skills to install and uninstall.
All Weather Outdoor Work
Using Leeman Outdoor 960×960 Front Service LED Display unique protection technology, the display can work normally under any weather conditions!
High level of protection is guaranteed, durable, reliable, anti-ultraviolet, and stable.
IP65 Dustproof And Waterproof
IP65 dustproof and waterproof, can resist some bad weather in outdoor activities.
Wide Viewing Angle
Viewing angle is up to 120° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
Outdoor Front Service LED Display
| Pixel Pitch (mm) | P6.67 | P8 | P10 (SMD) | P10 (DIP) | P16 | P2.5 (240x120) | P2.5 (320x160) | P3 | P3.076 | P4 (240x120) | P4 (256X128) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pixel Configuration | SMD2727 | SMD3535 | SMD3535 | DIP346 | DIP346 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 22,498 | 15,625 | 10,000 | 10,000 | 3,906 | 160,000 | 160,000 | 111,111 | 105,689 | 62,500 | 62,500 |
| Module Resolution (Pixel) | 48x48 | 40x40 | 32x32 | 32x32 | 20x20 | 96x48 | 128x64 | 80x40 | 104x52 | 60x30 | 64x32 |
| Module Size (mm) | 320x320 | 320x320 | 320x320 | 320x320 | 320x320 | 240x120 | 320x160 | 240x120 | 320x160 | 240x120 | 256x128 |
| Driving Mode (Duty) | 1/6 | 1/4 | 1/4 | 1/2 | 1/1 | 1/24 | 1/32 | 1/20 | 1/26 | 1/15 | 1/16 |
| Cabinet Size (mm) | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | ≥800 | ≥800 | ≥1,000 | ≥800 | ≥700 | ≥1,000 |
| Cabinet Weight (KG) | 40.5 | 40.5 | 40.5 | 50 | 50 | 120 | 120 | 120 | 120 | 120 | 120 |
| Brightness (CD/㎡) | ≥6,000 | ≥6,500 | ≥6,500 | ≥8,000 | ≥9,000 | 14 | 14 | 14 | 14 | 14 | 14 |
| Viewing Angle (°) | 120 | 120 | 120 | 120 | 120 | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 10 | 20 | 10 | 20 | 9 | 15 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Max. Power Consumption (W/㎡) | 700 | 900 | 576 | 610 | 540 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Avg. Power Consumption (W/㎡) | 230 | 300 | 200 | 205 | 185 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | ||||||
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | ||||||
| Protecting Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | ||||||
| Working Humidity | 10%～90% RH | 10%～90% RH | 10%～90% RH | ||||||||
| Lifetime (Hours) | 100000 | 100000 | 100000 | ||||||||
| Protection Grade | IP67 | IP67 | IP67 |
Indoor 500x500mm Rental LED Display 500C2 Series Parameter
| Pixel Pitch (mm) | P2.97 | P3.91 | P4.81 |
|---|---|---|---|
| Pixel Configuration | SMD2020 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 84x84 | 64x64 | 52x52 |
| Module Size (mm) | 250x250 | 250x250 | 250x250 |
| Driving Mode (Duty) | 1/28 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500x500 | 500x500 | 500x500 |
| Cabinet Weight (KG) | 6.5 | 6.5 | 6.5 |
| Brightness (CD/㎡) | ≥1,000 | ≥1,000 | ≥1,000 |
| Viewing Angle (°) | 120 | 120 | 120 |
| Gray Grade (Bits) | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 576 | 560 |
| Avg. Power Consumption (W/㎡) | 160 | 192 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 |
