Mobile LED display trailer manufacturer

Outdoor Trailer LED Display P3, P4, P5, P6, P8, P10, P16, P20

High Quality Hydraulic System
High Quality SMD LED
Stable Trailer
Easy Setup
Foldable Design Frame
1920Hz ~ 3840Hz
13bits ~ 16bits
Safe Operation

High Quality SMD DIP Mobile LED Screen Trailers

By using high quality SMD DIP 3in1 LED screen, the viewing angle is up to 160 degree, and the visual effect is extraordinary. The pixel pitches are P3, P4, P5, P6, P8, P10, P16 and P20

Mobile LED Screen Trailer for Sale Stable Trailer

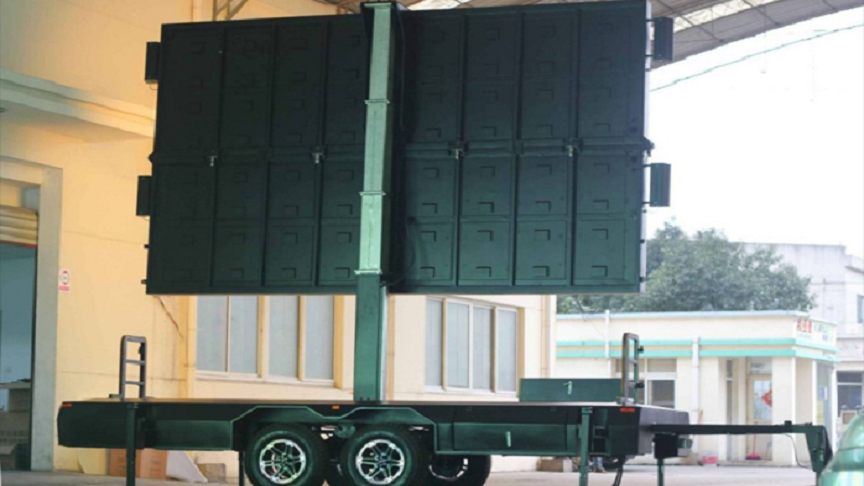

The frame of screen is foldable design, so the height of the screen can be folded during the transportation, which makes the trailer much more stable.

LED Trailer Screen for SALE Easy, Accurate and Safe

The frame is also rotatable design, so that brings lots of convenience during the setup. Meanwhile, the screen is supported by high quality hydraulic system. The operation is more accurate and safer.

Solar Power mobile trailer led screen for traffic and advertising Application Fields

Because of the convenience of operation and high-definition of this LED screen, it can be used in: Warnings for schools, passerbys or road engineering areas; Road closure or detour notification; Promotion of activities like musical festivals; Product advertisements; Real estate development.

Parameter

ItemP4P5P6
Pixel Pitch4mm5mm6mm
LED TypeSMD1921SMD2727SMD2727
Module Resolution64dots × 32dots64dots × 32dots32dots × 32dots
Driving Mode1/8scan1/8scan1/8scan
Module Pixels2,048dots2,048dots1,024dots
Module Size256mm × 128mm320mm × 160mm192mm × 192mm
Cabinet Size1,280mm × 1,024mm960mm × 960mm1,152mm × 768mm
Screen Size3,840mm × 2,048mm (optional)3,840mm × 1,920mm (optional)3,840mm × 1,920mm (optional)
Screen Resolution960dots × 512dots768dots × 384dots640dots × 320dots
Pixel Density62,500dots/㎡40,000dots/㎡27,777.78dots/㎡
Minimum Viewing Distance≥4m≥5m≥6m
Brightness6,000nits~7,000nits6,000nits~6,500nits6,000nits~6,500nits
IP GradeIP65IP65IP65
Refresh Rate1,920Hz~3,840Hz1,920Hz~3,840Hz1,920Hz~3,840Hz
Gray Scale13bits~24bits13bits~24bits13bits~24bits
Viewing AngleH:160° / V:160°H:160° / V:160°H:160° / V:160°
Maximum Power Consumption800W/㎡800W/㎡800W/㎡
Average Power Consumption230W/㎡230W/㎡230W/㎡
Input VoltageAC110V~AC220V @ 50Hz / 60HzAC110V~AC220V @ 50Hz / 60HzAC110V~AC220V @ 50Hz / 60Hz
Operating Temperature﹣20℃~65℃﹣20℃~65℃﹣20℃~65℃
Operating Humidity10%~90%10%~90%10%~90%
Cabinet MaterialIronIronIron
Cabinet Weight60kg/㎡60kg/㎡60kg/㎡
Operating SystemWindows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)
Signal Source CompatibilityDVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
Trailer External Dimension5,900mm × 1,600mm × 2,200mm5,900mm × 1,600mm × 2,200mm5,900mm × 1,600mm × 2,200mm
Trailer Turning Radius8m8m8m
Trailer Gross Weight≈ 2,100kg (excluding generator)≈ 2,100kg (excluding generator)≈ 2,100kg (excluding generator)
Max Speed60km/h60km/h60km/h
Braking SystemHydraulic brakingHydraulic brakingHydraulic braking
Tire Size14 inch14 inch14 inch
Tire Quantity4 pcs4 pcs4 pcs
Towing HeadEuropean type (optional)European type (optional)European type (optional)
Wheel Hub MaterialAluminum alloyAluminum alloyAluminum alloy
Lift SystemHydraulic lifting systemHydraulic lifting systemHydraulic lifting system
Lifting Height1,200mm1,200mm1,200mm
Rotating TypeHydraulic rotary systemHydraulic rotary systemHydraulic rotary system
Rotation Angle360 degree360 degree360 degree
Trailer Supporting Legs4pcs (lifting height 300mm & each affords 5t)4pcs (lifting height 300mm & each affords 5t)4pcs (lifting height 300mm & each affords 5t)
