Indoor LED Display Module

High Refresh rate indoor LED Screen Panel, High quality full color SMD indoor LED display module Including the Data Power Cables and 5 Years Warranty, All LED modules With Best Contrast and Color uniformity to ensure the LED display has excellent visual effect.

Indoor LED Screen Panel
LED Lamp

Indoor LED display module we choose Nationstar Gold Wire LED Chip that have the high reliability and contrast,wide view angle and good consistency which meet the need of high brightness, high refresh rate,high gray scale and keep natural color at one time with best color uniformity.

72 Hours Aging Test

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability the indoor LED display modules and ensure the LED modules without broken leds.

Driver IC

To achieve the best visual performance of our indoor and outdoor led display,we use the best Driving IC,such as MBI5124, MBI5153, ICN2038s, ICN2153 with high refresh rate,high grey level with latest technology.

72 Hours Aging Test

Leeman Indoor LED display Panel has all pixel available from P2mm, P2.5mm, P3mm, P3.91mm, P4mm, P4.81mm, P5mm, P6mm, P7.62mm, P10mm and small pixel series such as P1.875mm , P1.25mm, P1.538mm, P1.667mm, P1.86mm, P1.923mm etc 320mm*160mm  192mm*192mm to 256mm&128mm are available.

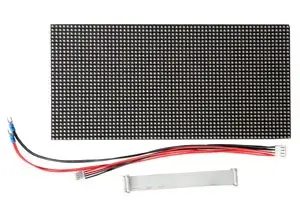

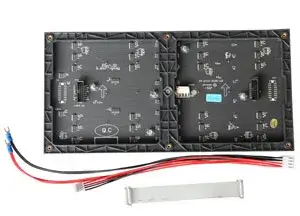

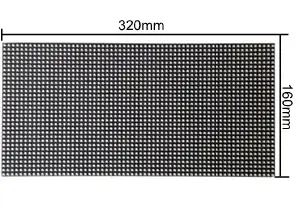

320x160mm Series Indoor LED Module
Pixel PitchLEDModule ResolutionLED TypeBrightness(Nits)Module Size(MM)Driving Mode
P1.25mm1010 (Black LED)256*128SMD 3in1600-800320*1601/64Scan
P1.538mm1010 (Black LED)208*104SMD 3in1600-800320*1601/52Scan
P1.667mm1010 (Black LED)192*96SMD 3in1600-800320*1601/64Scan
P1.839mm1515 (Black LED)174*87SMD 3in1600-800320*1601/58Scan
P1.839mm1515 (Black LED)174*87SMD 3in1600-800320*1601/58Scan
P1.86mm1515 (Black LED)172*86SMD 3in1600-800320*1601/43Scan
P2mm1515 (Black LED)160*80SMD 3in1600-800320*1601/40Scan
P2.5mm2121 (Black LED)128*64SMD 3in1800-1000320*1601/32Scan
P3.076mm2121 (Black LED)104*52SMD 3in1800-1000320*1601/26Scan
P4mm2121 (Black LED)80*40SMD 3in1800-1000320*1601/20Scan
P5mm2121 (Black LED)64*32SMD 3in1800-1000320*1601/16Scan
250x250mm Series Indoor LED Module
Pixel PitchLEDModule ResolutionLED TypeBrightness(Nits)Module Size(MM)Driving Mode
P2.604mm1515 (Black LED)96*96SMD 3in1800-1000250*2501/32Scan
P2.976mm2121 (Black LED)84*84SMD 3in1800-1000250*2501/16Scan
P3.91mm2121 (Black LED)64*64SMD 3in1800-1000250*2501/16Scan
P4.81mm2121 (Black LED)52*52SMD 3in1800-1000250*2501/13Scan

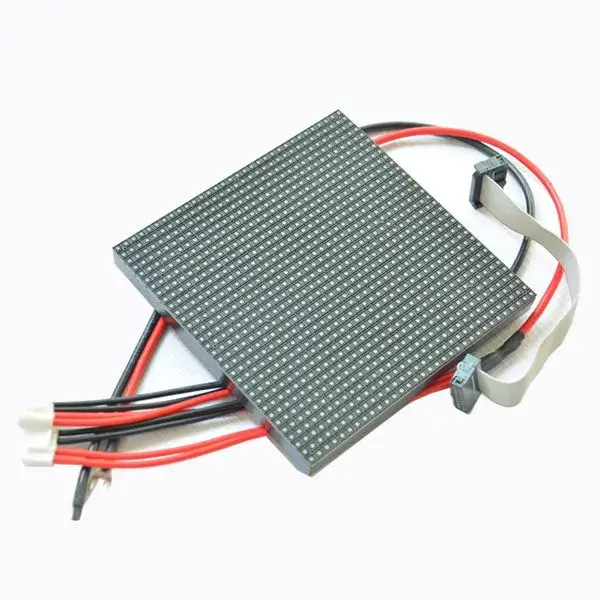

240*240mm Series Indoor LED Display Panel

Pixel PitchLEDModule ResolutionLED TypeBrightness(Nits)Module Size(MM)Driving Mode
P1.875mm1515 (Black LED)128*128SMD 3in1800-1000240*2401/32Scan
P2.5mm2121 (Black LED)96*96SMD 3in1800-1000240*2401/32Scan
