480X480mm Front Service LED Display Screen

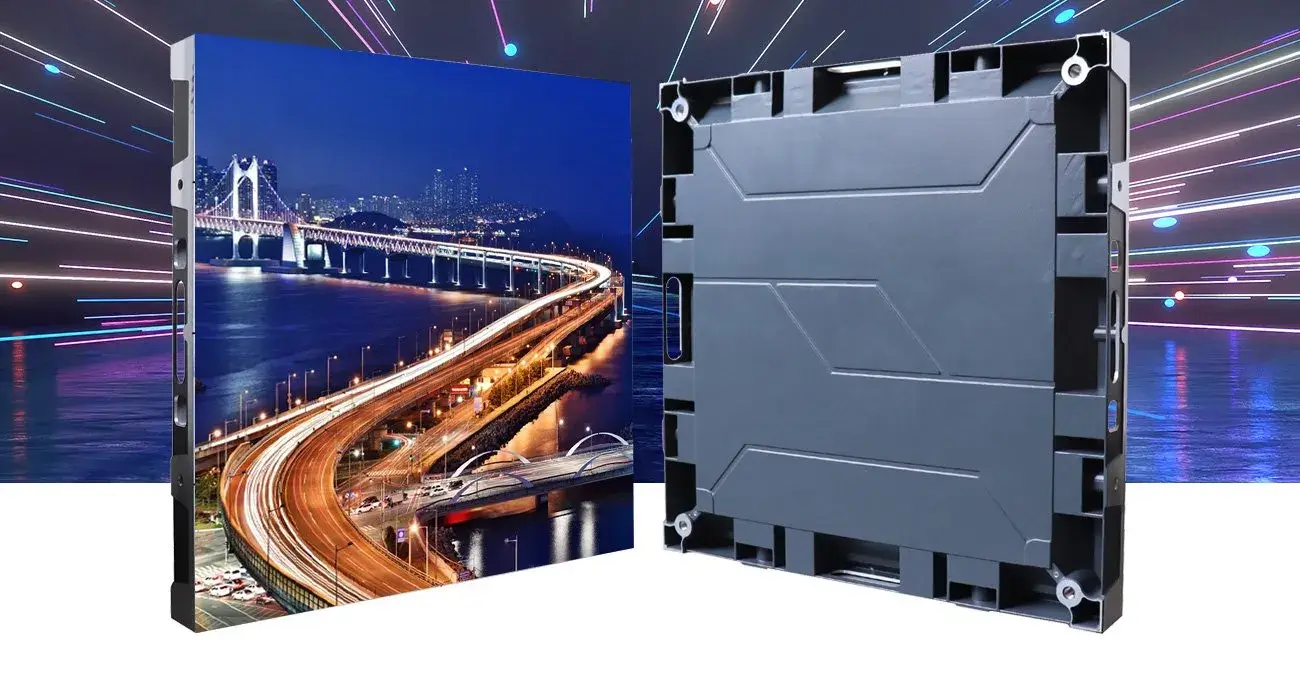

Leeman LED Indoor 480x480mm Front Service LED Display adopts ultra-thin cabinet design,480*480mm small size cabinet,
front service panel, high refresh rate SMD LED provides high-definition visual experience.

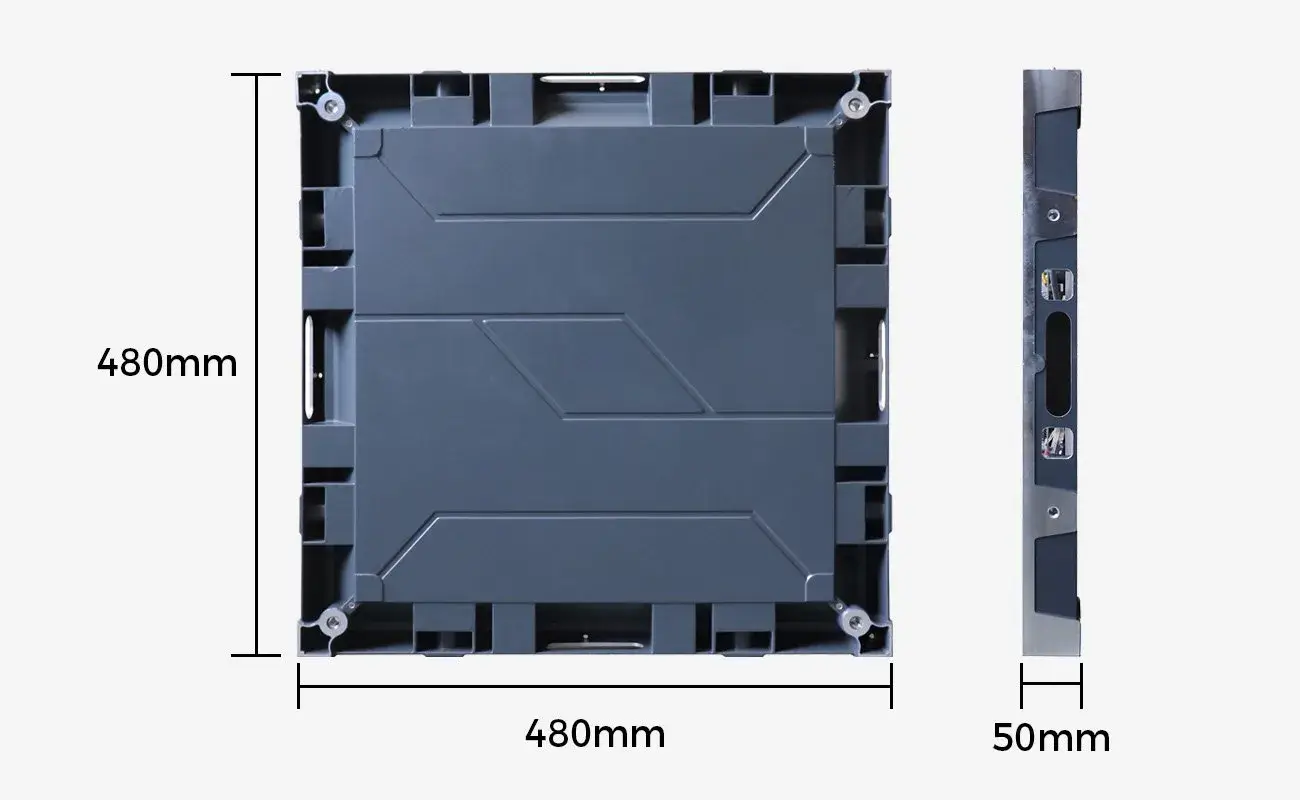

Lightweight and Small Size

Small size cabinet with 480*480mm, ultra Thin & Light weight design for easy-taking and portable,
assemble and disassemble.Not only save space, but also save labor cost.

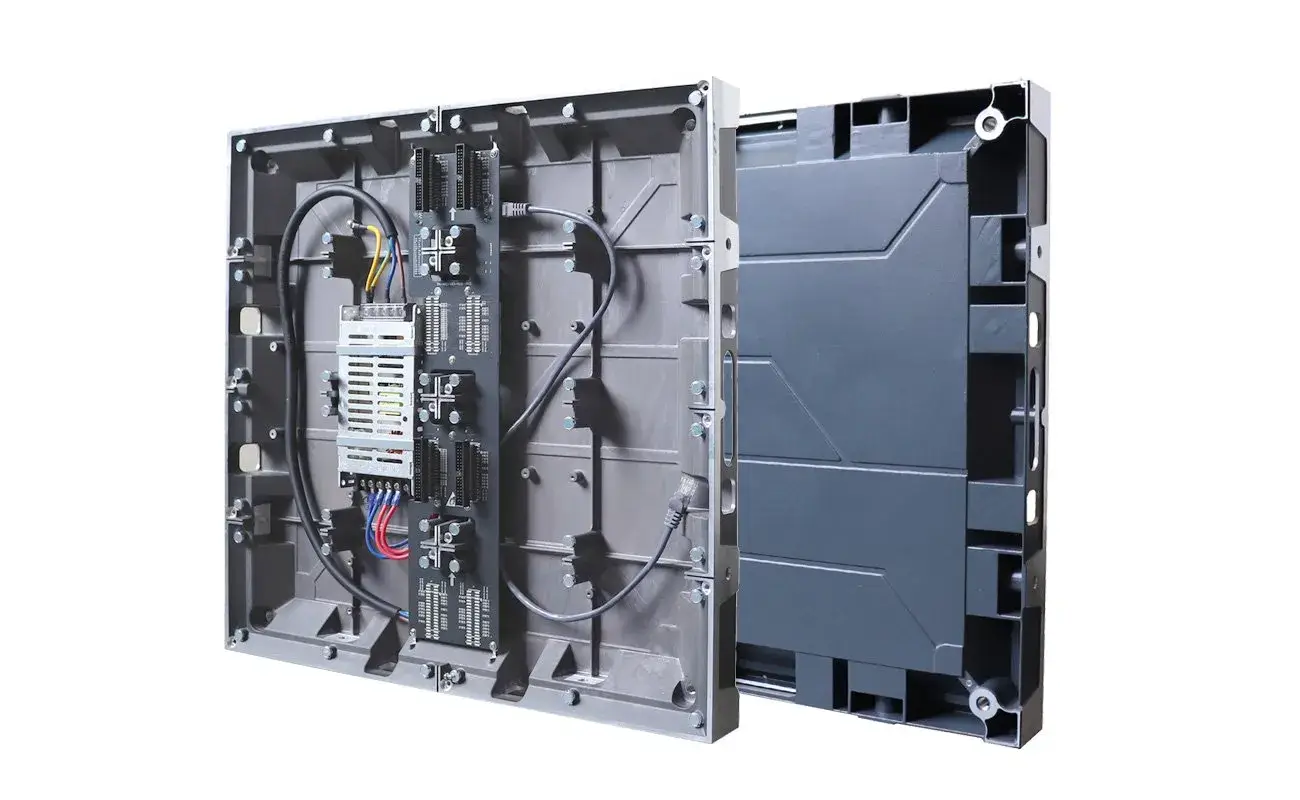

Perfect Cabinet Structure

Leeman LED Cabinet Design with elegant appearance and human layout, easy installation and maintenance,
pleasing to the eye with great visual experience.

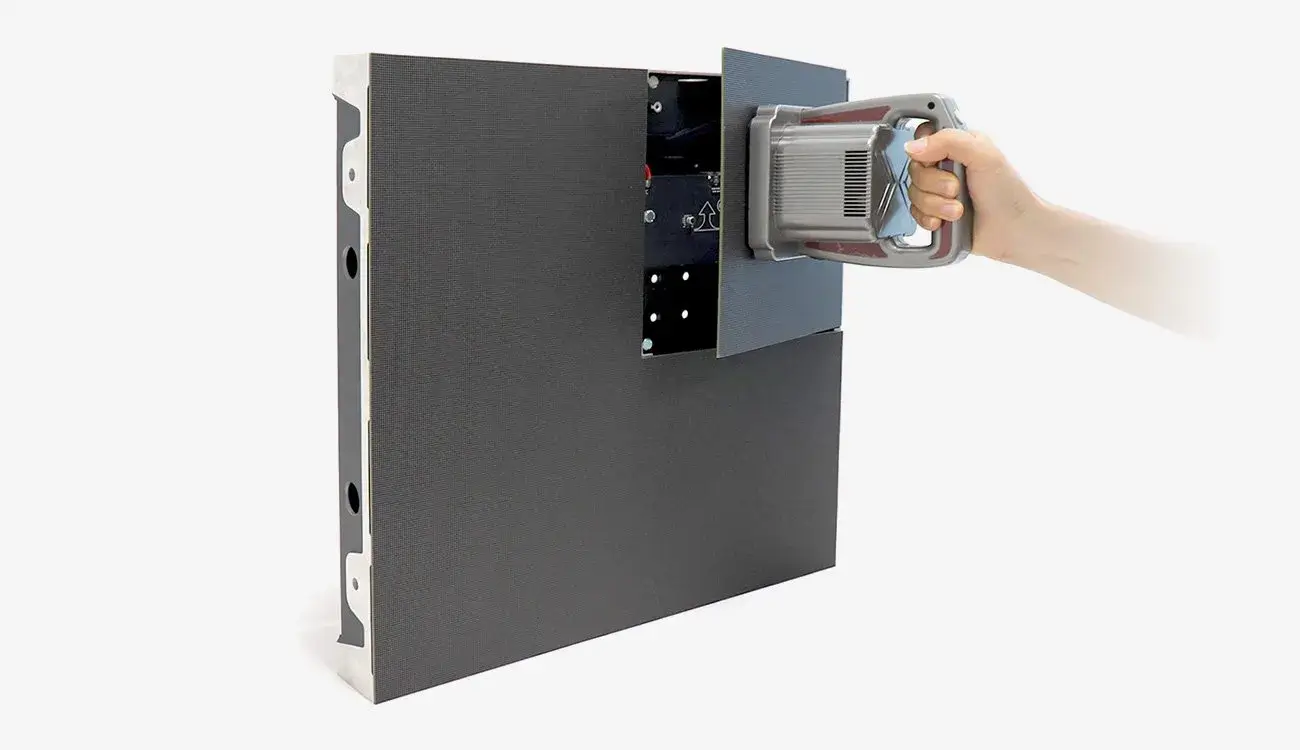

Front Service

LED display adapts full front service desgin, the LED display modules, led power supplies and the LED control cards
can be replaced in front easilly. The LED modules is assembled in front with magnetic features.

Seamless Splicing, Excellent Display Experience

Seamless splicing design, fast locking, simple internal wiring, perfect cabinet splicing.
Leeman LED display is seamless, with vivid images, clear video display, and gorgeous picture quality.

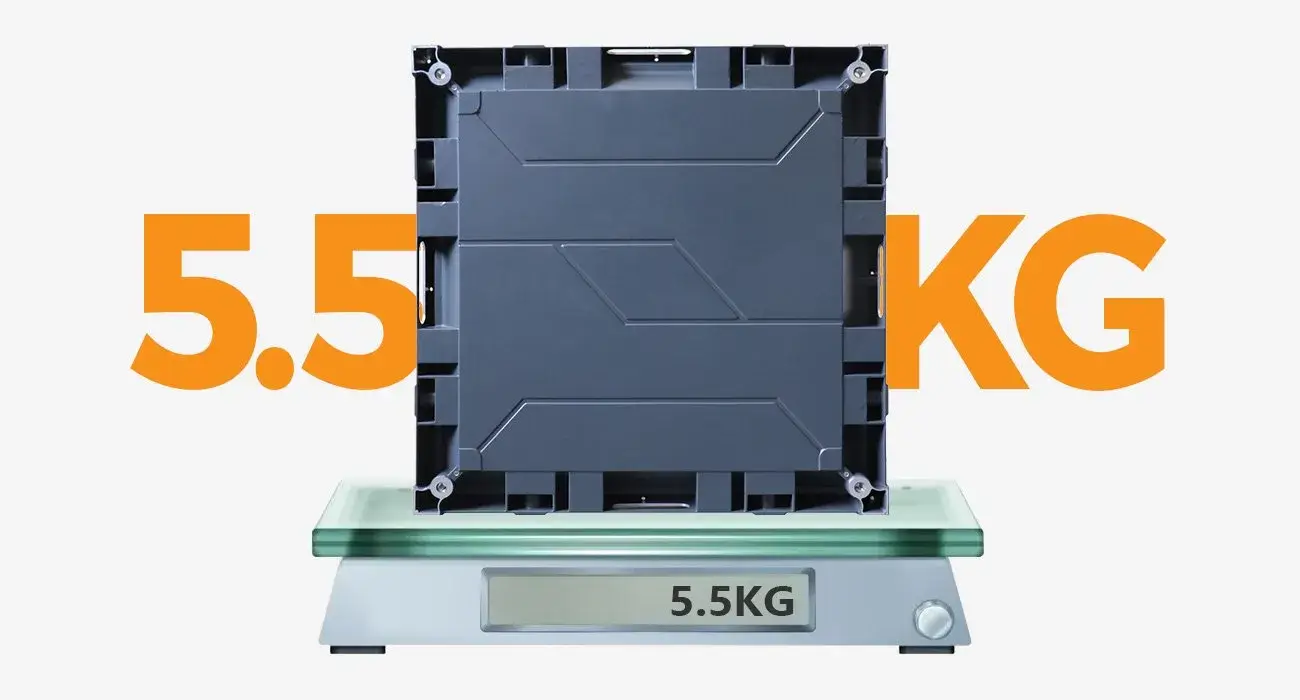

Ultra Light Weight Cabinet

Indoor 480x480mm Front Service LED Display weight Only 5.5kg, easy for transport, save your labor cost, also light weight is convenient for installtion, assembly and disassembly.

WIDE VIEWING ANGLE

Viewing angle is up to 120° vertical and horizontal, providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen viewing area.
It offers you clear and natural images in all directions.

Indoor 600×337.5mm Front Service HD LED Display

Pixel Pitch (mm)P1.579P1.875P2.5
Pixel ConfigurationSMD1010SMD1515SMD1010
Density (Pixels/㎡)401111284444160000
Module Resolution (Pixel)152x76128x12896x96
Module Size (mm)240x120240x240240x240
Driving Mode (Duty)1/381/641/48
Cabinet Size (mm)480x480480x480480x480
Cabinet Weight (KG)5.55.55.5
Brightness (CD/㎡)200~500200~500200~500
Viewing Angle (°)120120120
Gray Grade (Bits)≥13≥13≥13
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)≤ 500≤ 500≤ 500
Avg. Power Consumption (W/㎡)100~280100~280100~300
Frame Frequency (Hz)≥60≥60≥60
Refresh Frequency (Hz)≥2880~3,840≥2880~3,840≥2880~3,840
Working Temperature (ºC)-10~+60-10~+60-10~+60
Lifetime (Hours)100,000100,000100,000
Protection GradeIP35IP35IP35
