Front Service LED Display 500×500 Curved Flexible Rental LED Screen P1.953 P2.604 P2.98 P3.91 P4.81
Versatile LED panel specially for rental purpose
Indoor & outdoor, full range of pixel pitch
Versatile Rental LED Panel 500/1000mm
Specially designed for Indoor& outdoor large size LED rental installation
Ultra light weight die-casting
LED Display Panel size: 500x500mm / 500x1000mm
Aluminum die-casting panel
Modular design, LED module/panel/power box

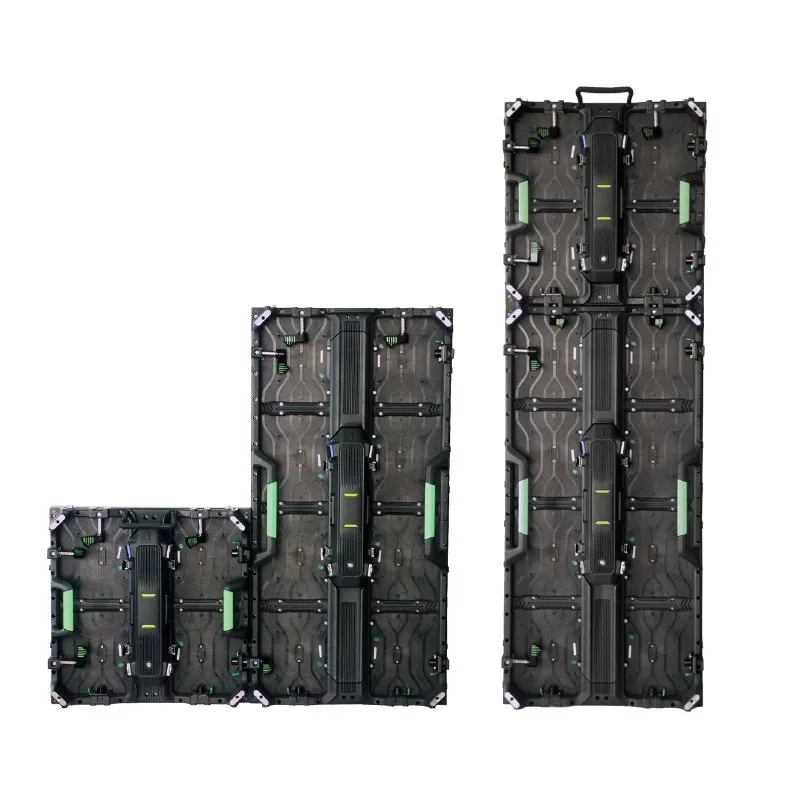

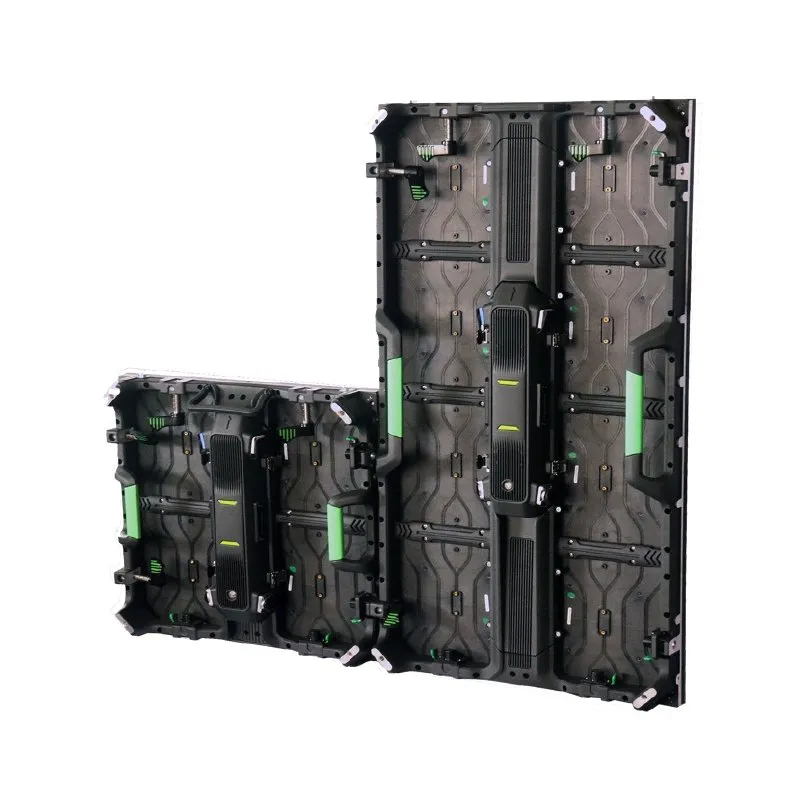

Mix-match use, 2 types of panel
The 500x500mm Panel and 500mm can be mix-match used both horizontally and vertically, to create the x*0.5 height size, more flexible in sizes.

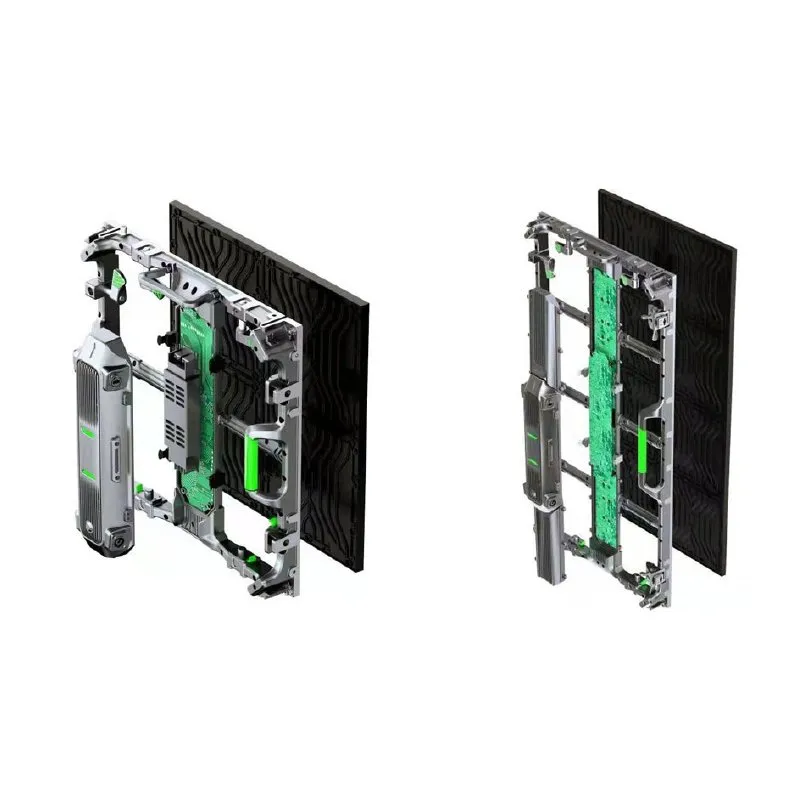

Modular design of LED modules, power box and panel frame, all of the parts can be quick replacement.
Super easy for set up and dismantle.

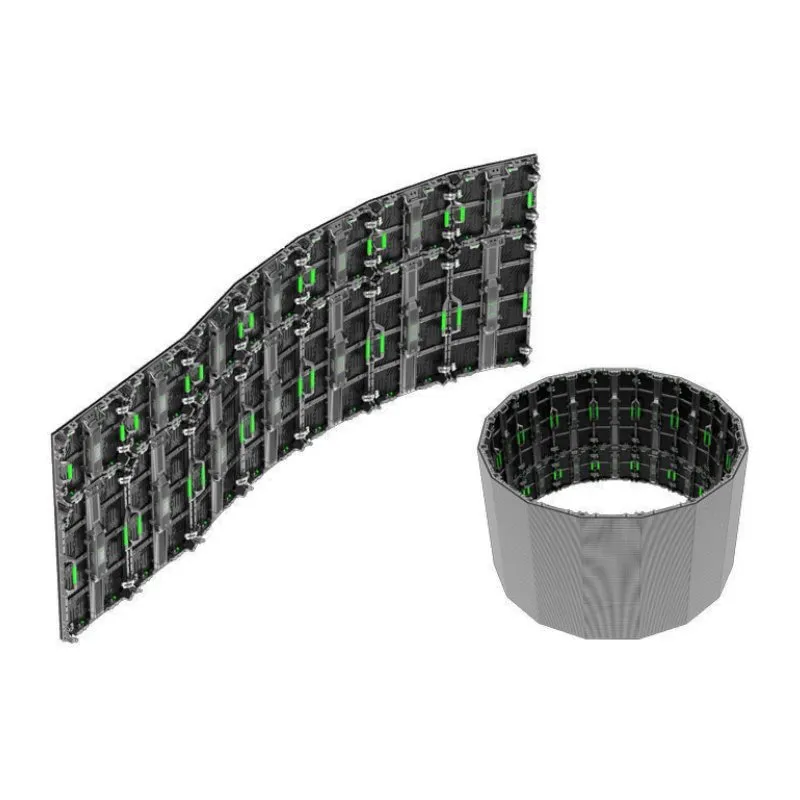

Thanks to the built-in curve locking system, the Lite series can be flexible curve, both concave & convex, for any pixel pitches.
360 circle shape installation, a minimum diameter of 2.5 meters by 16 panels.
90 degree right angle
With the 45 degree CNC edges of the panel, Lite can be easily to form a 90 degree right angle.
Minimum 4 panels to form a 0.5m x 0.5m x 4 sides of LED cube display.

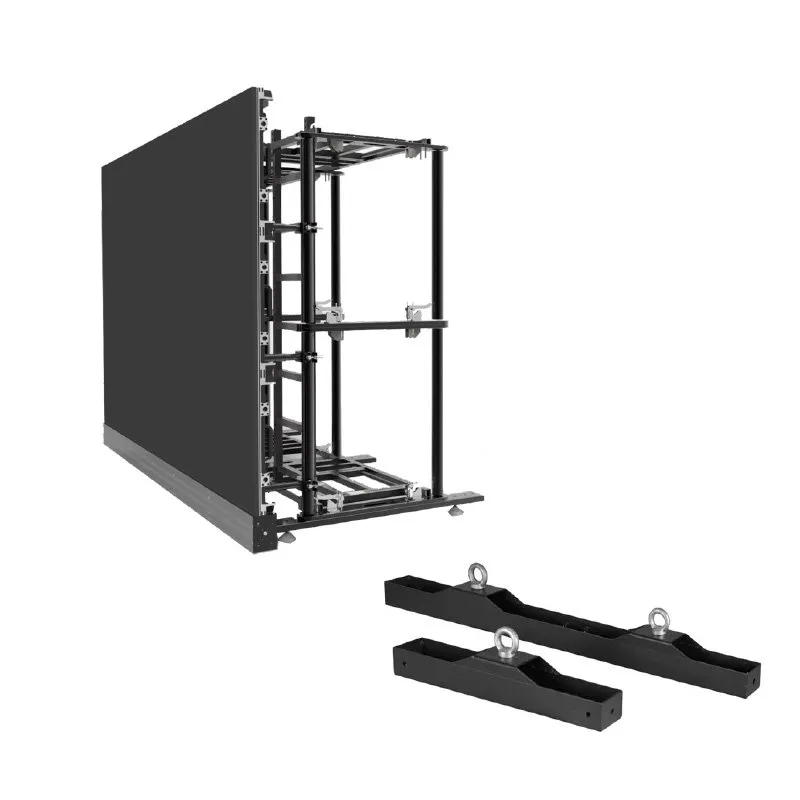

Hanging & stacking installation
Customized stacking to fit any size for the ground installation.
0.5m / 1m length iron / aluminum hanging bars are available.
Specification
| Pixel pitch(mm) | 2.6mm indoor | 2.9mm indoor | 3.9mm indoor | 2.9mm outdoor | 3.9mm Outdoor | 4.8mm Outdoor |
|---|---|---|---|---|---|---|
| Pixel Matrix Per SQM | 147456 | 112896 | 65536 | 112896 | 65536 | 43264 |
| Pixel Configuration | SMD1515 | SMD1515 | SMD2020 | SMD1415(outdoor) | SMD1921 | SMD1921 |
| Brightness(nits) | 800 nits | 800 nits | 1000 nits | 4500 nits | 4200 nits | 4000 nits |
| Scan | 1/24 | 1/28 | 1/16 | 1/21 | 1/16 | 1/13 |
| Power Con.(Max/Avg) | 200W/sqm(Avg) | 200W/sqm(Avg) | 220W/sqm(Avg) | 200W/sqm(Avg) | 220W/sqm(Avg) | 200W/sqm(Avg) |
| 640W/sqm(Max) | 600W/sqm(Max) | 680W/sqm(Max) | 640W/sqm(Max | 640W/sqm(Max) | 640W/sqm(Max) | |
| Modules Solution | 96 x 96 | 84 x 84 | 64 x 64 | 84 x 84 | 64 x 64 | 52 x 52 |
| Modules Dimension | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm |
| Cabinets Solution | 192 x 192 | 168 x 168 | 128 x 128 | 168 x 168 | 128 x 128 | 104 x 104 |
| Cabinets Dimension | 500mm x 500mm x 90mm | 500mm x 500mm x 90mm | 500mm x 500mm x 90mm | 500mm x 1000mm x 90mm | 500mm x 1000mm x 90mm | 500mm x 1000mm x 90mm |
| Cabinets Weight | 7.1kg / 15.65 lbs | 7.5kg / 16.53lbs | 7.1kg / 15.65 lbs | 7.8kg / 17.19lbs | 8.2kg / 18.08lbs | 8.2kg / 18.08lbs |
| Serivice Access | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| Refresh Rate(HZ) | 1920Hz / 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz |
| Grayscale(bit) | 16 | 16 | 16 | 16 | 16 | 16 |
| Viewing Angle(H/V) | 160¡ã/160¡ã | 160¡ã/160¡ã | 160¡ã/160¡ã | 160¡ã/160¡ã | 160¡ã/160¡ã | 160¡ã/160¡ã |
| IP Rate | IP31 / IP 31 | IP31 / IP31 | IP31 / IP31 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 |
| Input Voltage(AC) | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ |
| Operating Temperature | -20° ~ 60 ° | -20° ~ 60 ° | -20° ~ 60 ° | -20° ~ 60 ° | -20° ~ 60 ° | -20° ~ 60 ° |
| Lifespan(hrs) | >100,000(hrs) | >100,000(hrs) | >100,000(hrs) | >100,000(hrs) | >100,000(hrs) | >100,000(hrs) |
