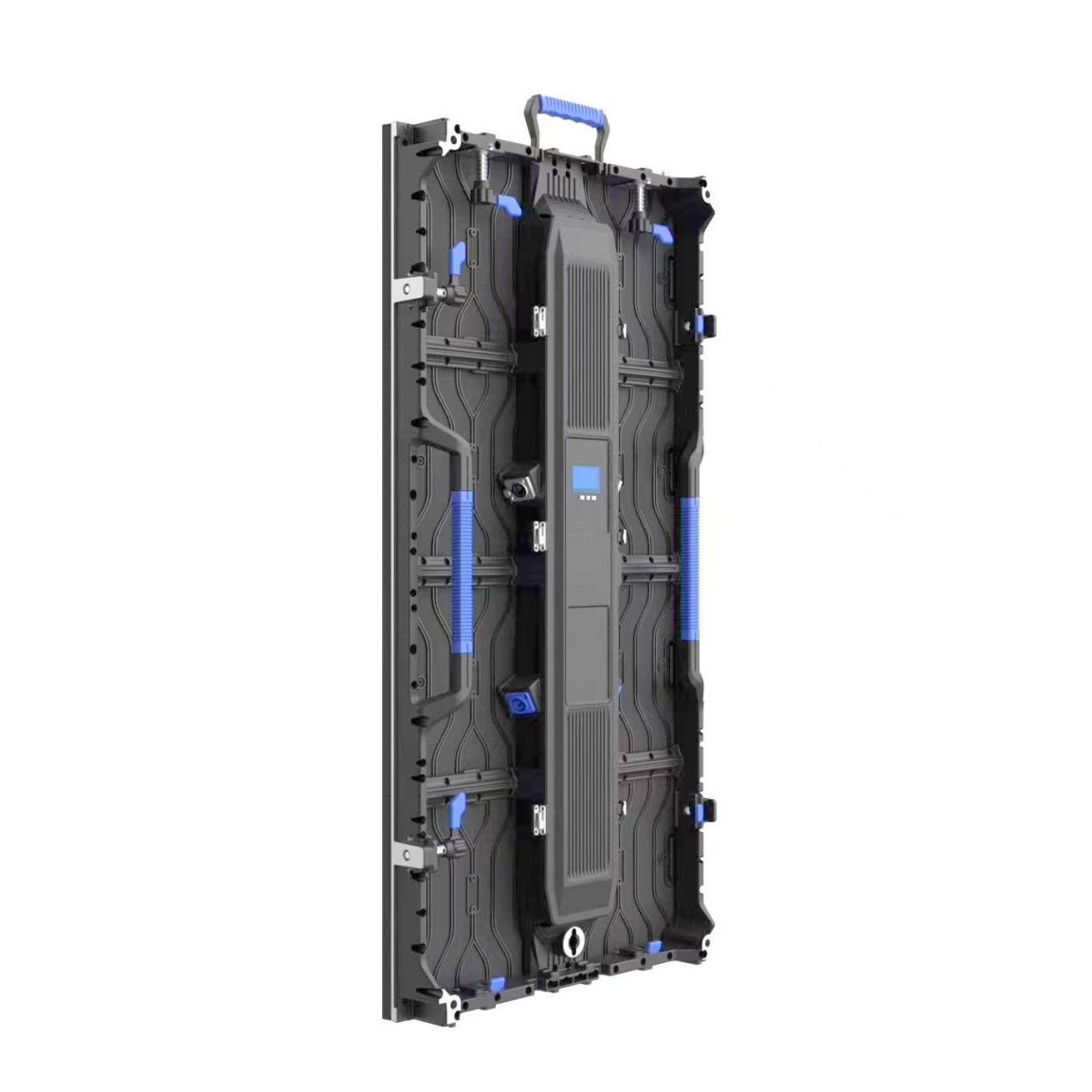

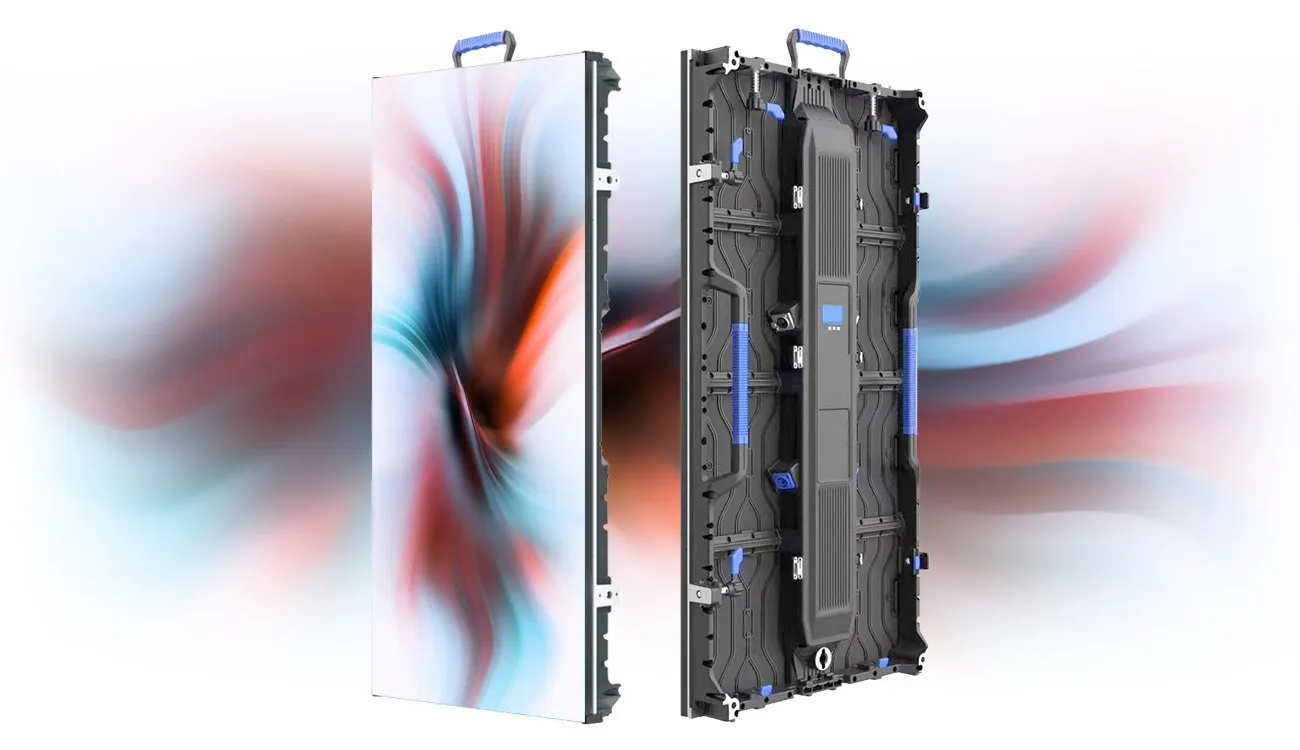

Graceful Rental LED Display 1000C3 Series
The 500x1000mm Indoor Outdoor Rental LED Display 1000C3 series is made of sturdy and beautiful materials,
and there are two quick locking devices on the left and right sides, which can ensure faster assembly speed and better screen flatness.
It also has bumper feet on the bottom of the cabinet to protect the edges of the LED modules.

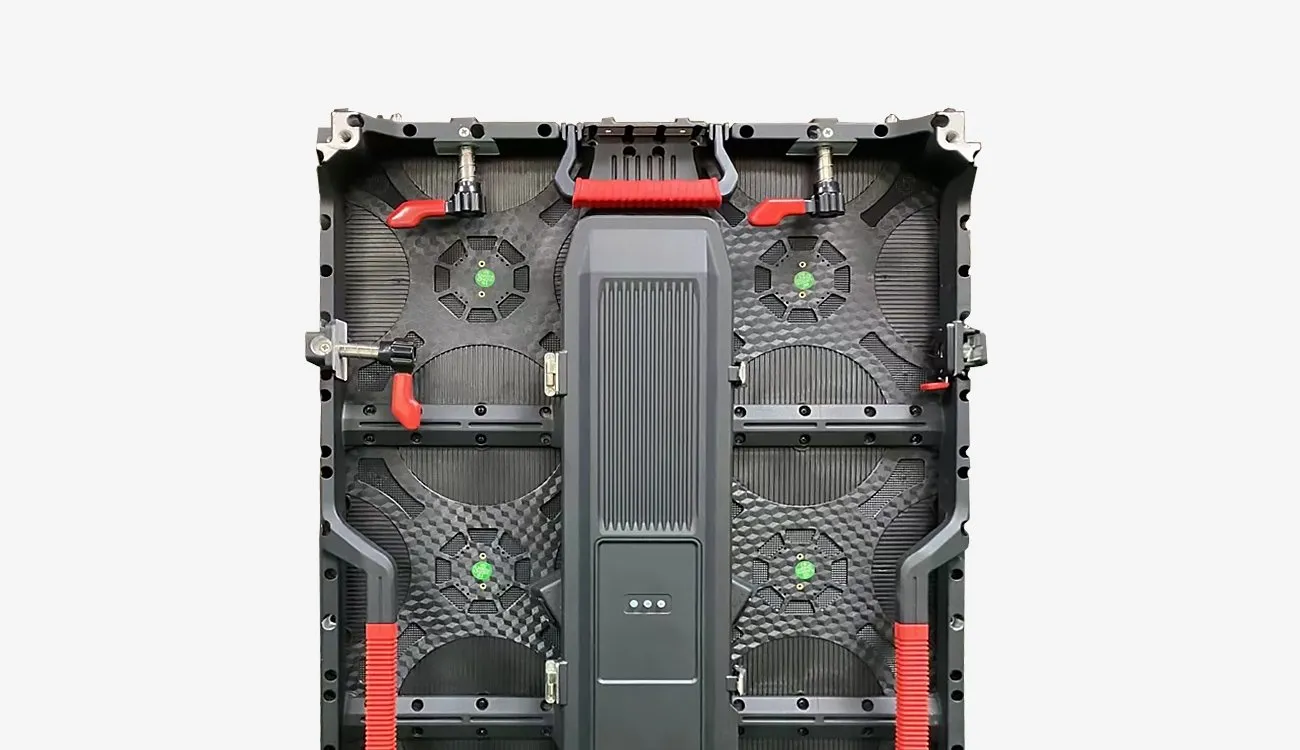

Quick Install
1000C3 series LED screen Two Fast Locks on Left and Right Side,Ensure faster assembly and better screen flatness.
Suitable For 250x250mm Standard Size Modules
500x1000mm LED display with standard size panel: 250x250mm. Standard led screens are quick to assemble and maintain.
Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.
Corner Protector for LED
1000C3 series LED video wall screen rental has four corner protectors in each corner to prevent LED to be damaged,
more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use.

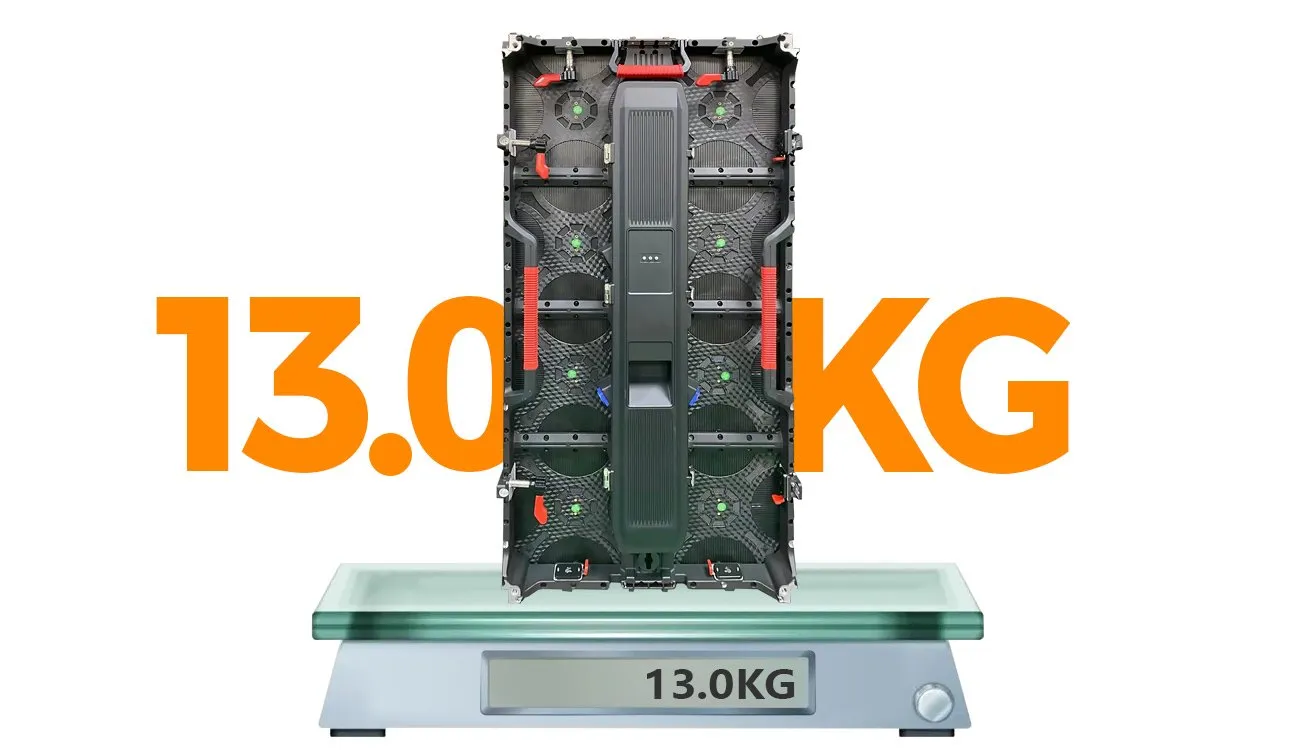

Lightweight and Thin
LeemanDisplay 500x1000mm Indoor Outdoor Rental LED Display 1000C3 series LED screen cabinet weighs 13KG/pc, easy to operate: one person to install, disassemble and maintain.

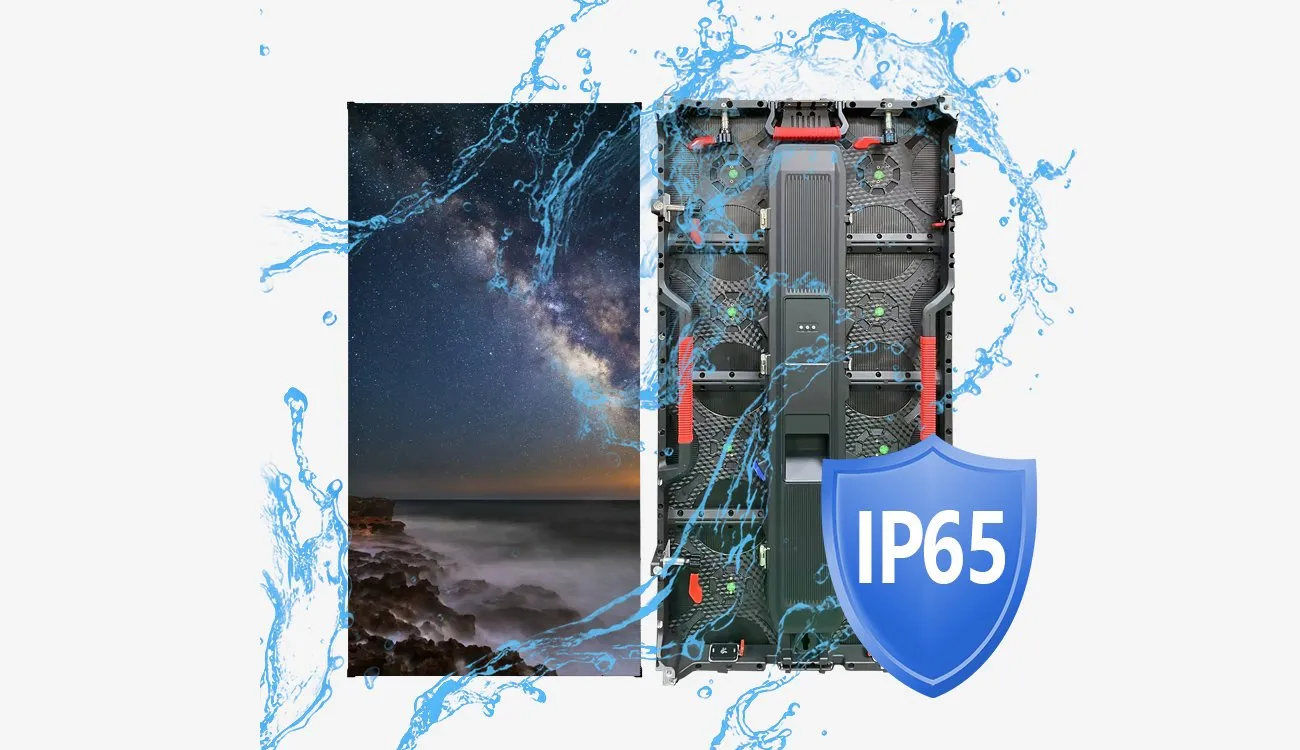

IP65 Dustproof And Waterproof
The 1000C3 series outdoor LED display supports IP65 dustproof and waterproof,
it can resists severe weather conditions during outdoor activities.
And die-cast aluminum is corrosion resistant.
Outdoor 500x1000mm Rental LED Display 1000C3 Series Parameter
| Pixel Pitch (mm) | P2.97 | P3.91 | P4.81 |
|---|---|---|---|
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Density (Pixels/㎡) | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 84x84 | 64x64 | 52x52 |
| Module Size (mm) | 250x250 | 250x250 | 250x250 |
| Driving Mode (Duty) | 1/21 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500x1000 | 500x1000 | 500x1000 |
| Cabinet Weight (KG) | 13 | 13 | 13 |
| Brightness (CD/㎡) | ≥6,000 | ≥6,000 | ≥6,000 |
| Viewing Angle (°) | 120 | 120 | 120 |
| Gray Grade (Bits) | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 560 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
Indoor 500x1000mm Rental LED Display 1000C3 Series Parameter
| Pixel Pitch (mm) | P2.97 | P3.91 | P4.81 |
|---|---|---|---|
| Pixel Configuration | SMD2020 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 84x84 | 64x64 | 52x52 |
| Module Size (mm) | 250x250 | 250x250 | 250x250 |
| Driving Mode (Duty) | 1/28 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500x1000 | 500x1000 | 500x1000 |
| Cabinet Weight (KG) | 12 | 12 | 12 |
| Brightness (CD/㎡) | ≥1,000 | ≥1,200 | ≥1,000 |
| Viewing Angle (°) | 120 | 120 | 120 |
| Gray Grade (Bits) | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 576 | 560 |
| Avg. Power Consumption (W/㎡) | 160 | 192 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 |
