안건 | P4 | P5 | P6 |
---|---|---|---|
픽셀 피치 | 4mm | 5mm | 6mm |
LED 유형 | SMD1921 | SMD2727 | SMD2727 |
모듈 해상도 | 64dots × 32dots | 64dots × 32dots | 32dots × 32dots |
운전 모드 | 1/8scan | 1/8scan | 1/8scan |
모듈 픽셀 | 2,048dots | 2,048dots | 1,024dots |
모듈 크기 | 256mm × 128mm | 320mm × 160mm | 192mm × 192mm |
캐비닛 크기 | 1,024mm × 1,024mmm | 960mm × 960mm | 960mm × 960mm |
Screen Size | 4,096mm × 2,048mm (optional) | 3,840mm × 1,920mm (optional) | 3,840mm × 1,920mm (optional) |
Screen Resolution | 1024dots × 512dots | 768dots × 384dots | 640dots × 320dots |
픽셀 밀도 | 62,500dots/㎡ | 40,000dots/㎡ | 27,777dots/㎡ |
최소 시청 거리 | ≥4m | ≥5m | ≥6m |
명도 | 6,000nits~7,000nits | 6,000nits~6,500nits | 6,000nits~6,500nits |
IP등급 | IP65 | IP65 | IP65 |
재생률 | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz |
그레이 스케일 | 13비트~24비트 | 13비트~24비트 | 13비트~24비트 |
시야각 | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
최대 전력 소비 | 800W/㎡ | 800W/㎡ | 800W/㎡ |
평균 전력 소비 | 230W/㎡ | 230W/㎡ | 230W/㎡ |
입력 전압 | AC110V~AC220V @ 50Hz / 60Hz | AC110V~AC220V @ 50Hz / 60Hz | AC110V~AC220V @ 50Hz / 60Hz |
작동 온도 | ﹣20℃~65℃ | ﹣20℃~65℃ | ﹣20℃~65℃ |
작동 습도 | 10%~90% | 10%~90% | 10%~90% |
캐비닛 재질 | Iron | Iron | Iron |
내각 무게 | 60kg/㎡ | 60kg/㎡ | 60kg/㎡ |
운영 체제 | 윈도우(Win7, Win8 등) | 윈도우(Win7, Win8 등) | 윈도우(Win7, Win8 등) |
신호 소스 호환성 | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0 등 | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0 등 | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0 등 |
Truck External Dimension | 5,995mm × 2,190mm × 3,300mm | 5,995mm × 2,190mm × 3,300mm | 5,995mm × 2,190mm × 3,300mm |
Truck Gross Weight | ≈ 4,500kg | ≈ 4,500kg | ≈ 4,500kg |
Maximum Speed | 80km/hr | 80km/hr | 80km/hr |

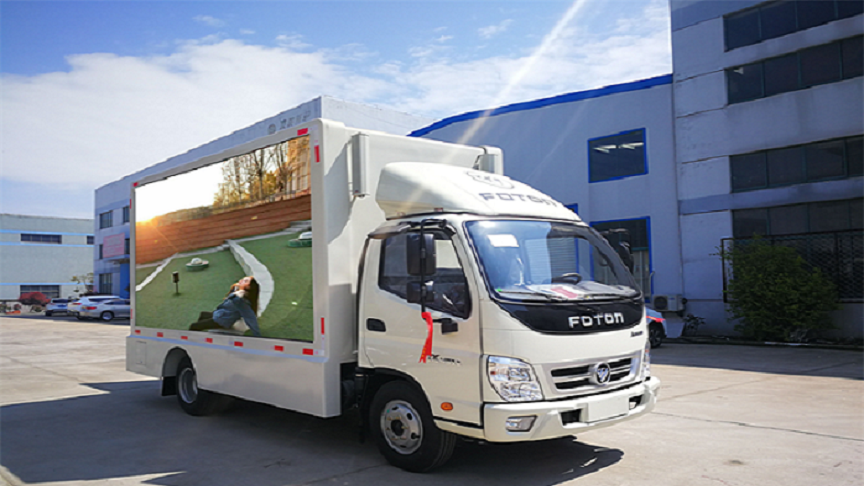

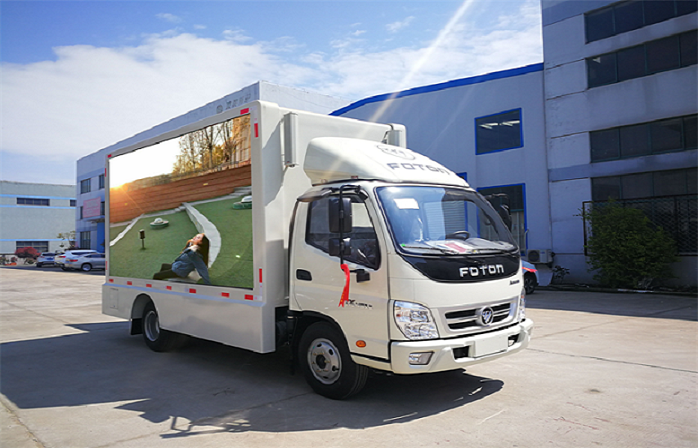

Chassis Brand | Foton | Foton | Foton |
Wheel Base | 3,360mm | 3,360mm | 3,360mm |
Engine Displacement | 2,780ml / 87kw | 2,780ml / 87kw | 2,780ml / 87kw |
Driver Seat | Left (Right optional) | Left (Right optional) | Left (Right optional) |
Emission Standard | Euro III or Euro IV | Euro III or Euro IV | Euro III or Euro IV |
Frame Lifting System | Hydraulic system | Hydraulic system | Hydraulic system |
Lifting Height | 1,600mm | 1,600mm | 1,600mm |
Load-bearing of Lifting System | 3,000kg | 3,000kg | 3,000kg |
Oil Type Of Generator | Diesel | Diesel | Diesel |
Power of Generator | 8KW | 8KW | 8KW |
