Display a LED flessibile Schermo a LED morbido Schermo a parete flessibile a LED
Flexible LED Display Screen, Soft LED Screen, Curved Flexible LED Panel Video Screen

Flexible LED Screen Outdoor Flexible LED Modules P0.9 P1.25 P1.579 P1.667 P1.875 P1.923 P2 P2.5 P3 P3.076 P4 P5

Inchiesta
Multiple Curves
Smooth Surface
Slim Shape
Intelligent Design
High Resolution
Outdoor IP68 Protection Level

Ultra-Thin & Light Flexible LED Screen Campi di applicazione

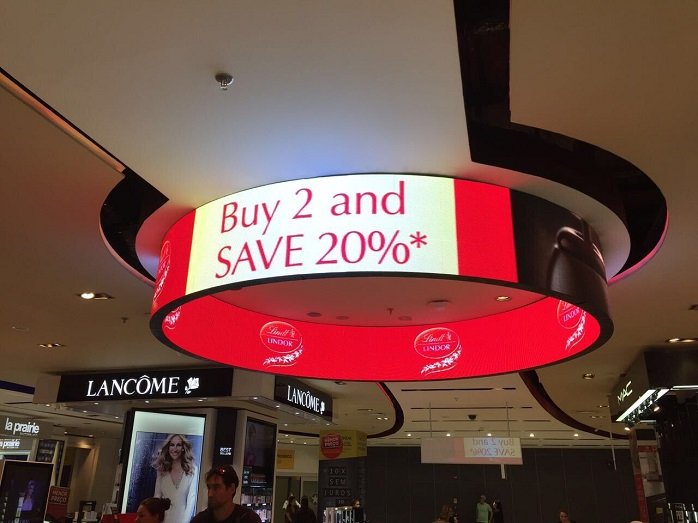

In order to fit each different scene, the Flexible LED Panel | Cylindrical LED Display | Flexible Video LED Screen | flexible LED Modules is made up of superior quality materials with the concise and strong cabinet. This product is usually used in: Stages; Exhibition events; Shopping centers.

Parametro

ArticoloP1.5P1.7 P1.9 P2.6
Passo dei pixel1,5625 mm1.736mm1.953mm2,604 mm
Tipo LEDSMD1010SMD1010SMD1010SMD1515
Risoluzione del modulo160dots × 160dots144dots × 144dots128dots × 128dots96dots × 96dots
Modalità di guida1/32scan1/29scan1/32scan1/24scan
Pixel del modulo25,600dots20.736 punti16,384dots9,216dots
Dimensione del modulo250mm × 250mm250mm × 250mm250mm × 250mm250mm × 250mm
Dimensioni armadioCustomizedCustomizedCustomizedCustomized
Risoluzione del gabinettoCustomizedCustomizedCustomizedCustomized
Densità di pixel409.600 punti/㎡331,776dots/㎡262,144dots/㎡147,456dots/㎡
Distanza minima di visione≥1.5m≥1.7m≥1.9m≥2.6m
Luminosità800nits～1,000nits800nits～1,000nits800nits～1,000nits800nits～1,000nits
Grado IPIP43IP43IP43IP43
Frequenza di aggiornamento≥3,840Hz≥3,840Hz≥3,840Hz≥3,840Hz
Scala di grigi13 bit ~ 24 bit13 bit ~ 24 bit13 bit ~ 24 bit13 bit ~ 24 bit
Angolo di visioneH:160° / V:160°H:160° / V:160°H:160° / V:160°H:160° / V:160°
Consumo energetico massimo750W/㎡680W/㎡618W/㎡500W/㎡
Consumo energetico medio250W/㎡225W/㎡206W/㎡150W/㎡
Tensione di ingressoAC110V～AC220V @ 50Hz / 60HzAC110V～AC220V @ 50Hz / 60HzAC110V～AC220V @ 50Hz / 60HzAC110V～AC220V @ 50Hz / 60Hz
temperatura di esercizio﹣20℃～65℃﹣20℃～65℃﹣20℃～65℃﹣20℃～65℃
Umidità operativa10%～90%10%～90%10%～90%10%～90%
Materiale del gabinettoAluminumAluminumAluminumAluminum
Peso dell'armadio35kg/㎡35kg/㎡35kg/㎡35kg/㎡
Sistema operativoWindows (Win7,Win8,etc.)Windows (Win7,Win8,etc.)Windows (Win7,Win8,etc.)Windows (Win7,Win8,etc.)
Compatibilità della sorgente del segnaleDVI, HDMI1.3, DP1.2, SDI, HDMI2.0, ecc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, ecc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, ecc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, ecc.
