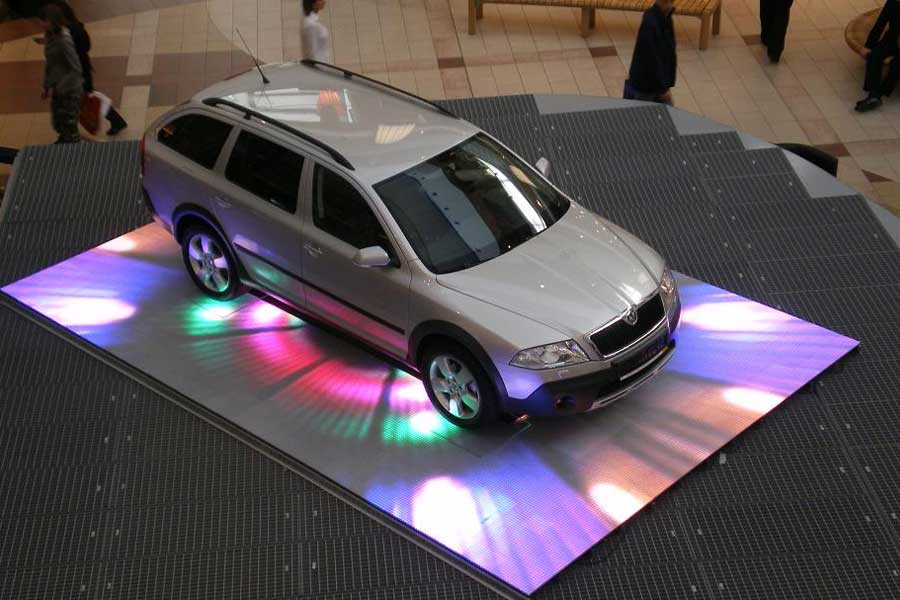

We provide interactive floor LED display. They are mainly used on events stage, night club, concerts, shows, etc. Our floor LED display is very strong, that it can bear 1.5ton/m2. People can walk or jump on it, and even the car can drive on it.

Main Features:

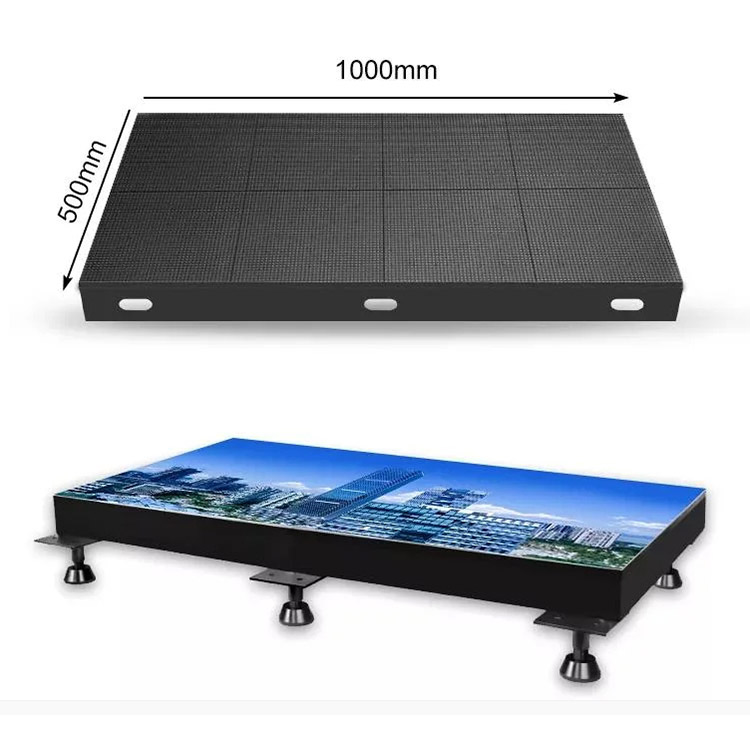

500x500mm or 500x1000mm panel size optional;
Interactive and non- interactive solution available;
Strong load-bearing ability. It can bear 1.5 ton per square meter.
Excellent flatness and uniformity;
Easy to set up and disassembly;
Suitable for both fixed installation and rental use.

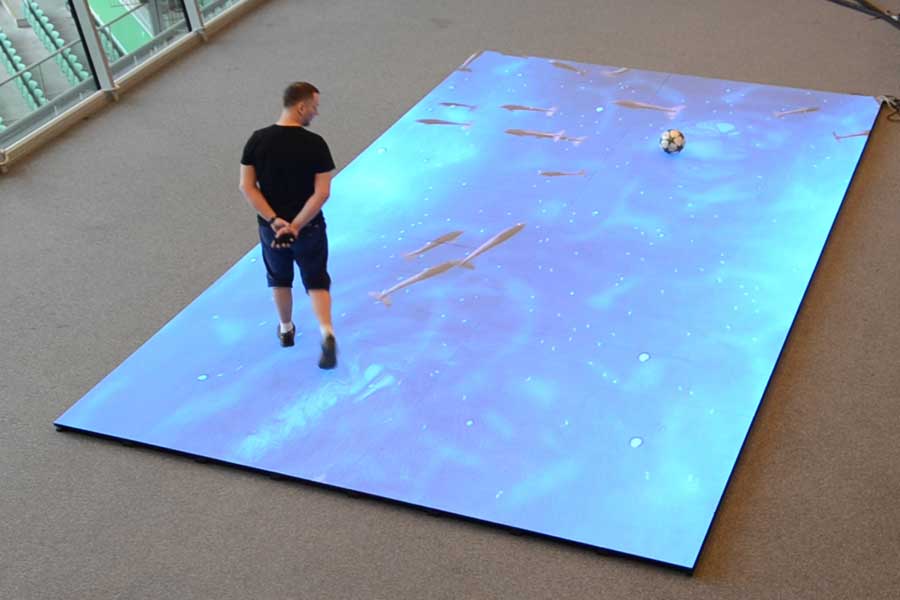

Interactive LED Floor
They will bring innovation and interactivity to each place, creating extensive interaction zones with no size limit. Create your applications and games and bring interaction to your client’s projects.

Our interactive floor LED display is synonymous with quality and innovation. Each cabinet of this screen is waterproof, and it has high-resistance materials that allow it to withstand heavy weights without any risk. Also, the video screen will never be affected by sunlight.

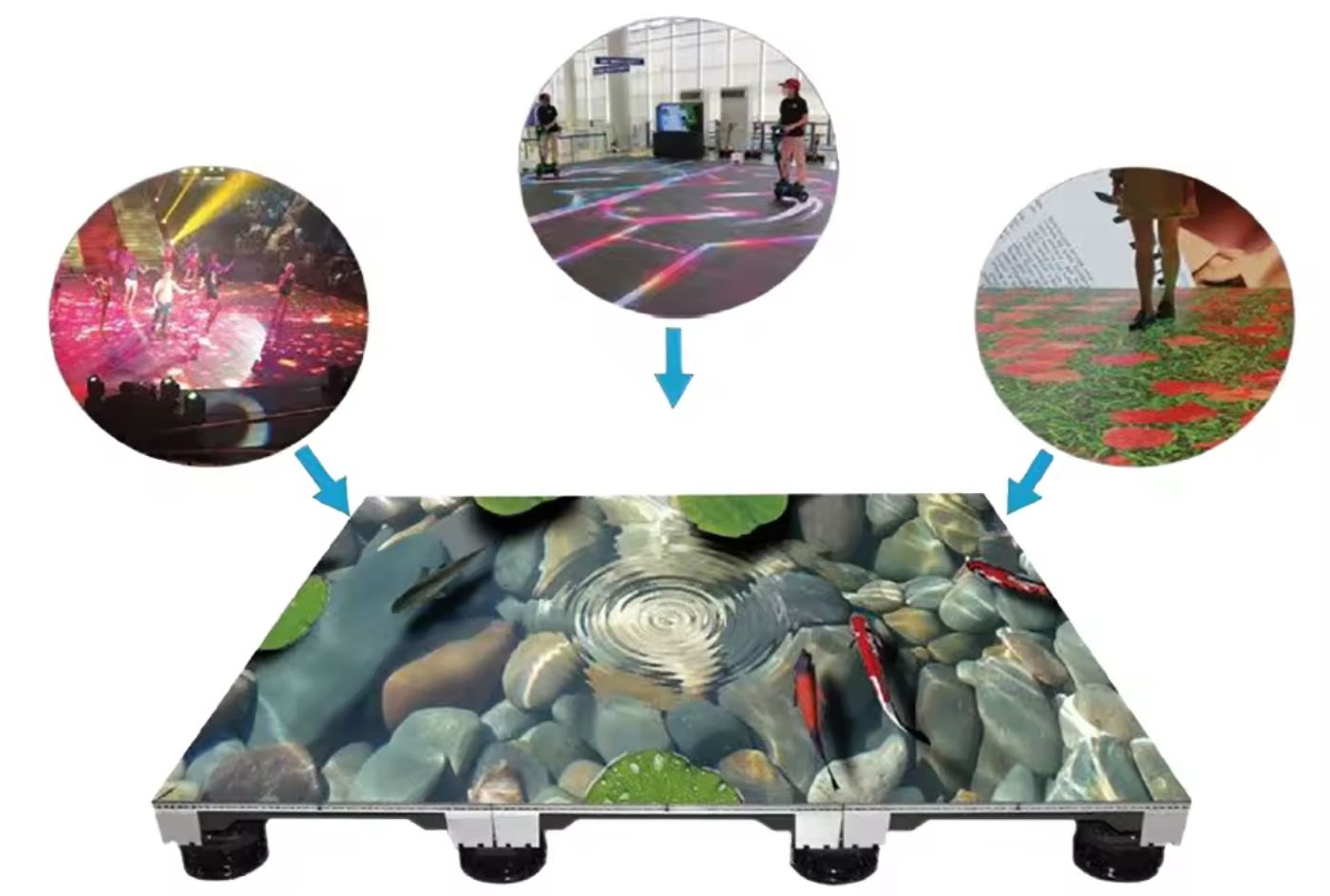

Interactive LED floor screens with indoor and outdoor versions bring innovation to fairs, stores, shopping malls, nightclubs and other spaces.

Every day it is more common to see this type of led screen in public places. Through their indoor and outdoor versions, these screens innovate with advertising experiences full of creativity.

It is an ideal option for brands to create entertainment spaces with their products and create interactive experiences where they come to life. Users can see this innovative way of communicating products and services on a large scale.

Key Features of LED Screens for Concert
Ultra-thin Design: Ultra-thin design, can be used on floors with restricted height.
High Load-bearing Capacity: Solid aluminum structure design, light weight, stronger load-bearing capacity, reaching 2.2T/m2.
Unique Design: The cabinet surface is non-slip, waterproof, scratch-proof and anti-collision.
High Security: Waterproof IP54/IP45 for Indoor, IP66 for outdoor LED display floor.
Gold Plating Process: All connectors, power supplies, cables, etc. are all gold-plated.
Special Mask: Made of PC material, UV-resistant, and no color difference when viewed from any angle.
High Heat Dissipation: Professional heat dissipation channel design and sheet metal cabinet, heat dissipation.
Interactivity: Built-in interactive sensory chip, a variety of interactive materials.
Customizable: Mature customized services to meet your personalized needs.
VR Solution: Supporting VR immersive LED screen solution.

Interactive LED Dance Floor – How It Works?
The interactive floor tile screen adds the induction interactive function based on the LED floor screen.
First, the interactive LED dance floor is equipped with pressure, capacitive, infrared, and other devices.
Then, when a person moves on the interactive dance floor, the sensor can sense the person’s position and respond to the trigger information to the main control.
Finally, the main control logic judges and outputs the corresponding display effect.

An interactive LED dance floor is a type of LED display that consists of multiple LED panels that can display different images, colors, patterns, or animations. The LED panels are equipped with sensors that can detect the movement and position of people or objects on them. The sensors can be either built-in pressure sensing devices or exterior radar detecting devices, The sensors send the coordinates of the motion to software installed on a PC, which then generates a corresponding response and sends it back to the LED panels. The response can be a change in the display, a sound effect, or an interaction with other devices such as cameras or speakers. The whole process creates a two-way communication between the LED dance floor and the users.

Interactive LED Dance Floor with built-in infrared sensing devices.
Infrared sensors add another layer of interaction by detecting motion and proximity without physical contact. They are not affected by the color or material of the clothing or shoes of the user, which makes them reliable for a wide range of applications and users.

Interactive LED dance Floor with Radar detecting device.
Radar sensors, while powerful for motion detection and ranging, can sometimes be less effective in crowded or complex environments where multiple signals can interfere with one another. They can also struggle with detecting small or subtle movements and might be affected by certain materials that absorb or block radar waves

Interactive LED Dance Floor with built-in Gravity devices.
Gravity sensors, in contrast, have the advantage of being highly sensitive to direct pressure, making them ideal for applications where precise detection of position and movement is required, such as in an interactive floor. They respond to the exact amount of force exerted on them, allowing for accurate tracking of footsteps or positioning
