600×337.5mm 16:9 Golden Ratio LED Display Screen
4 : 3 Cabinet Size Design with 400*300mm dimension, high flatness, easy to install and disassemble, High difinition quality in an HD LED display
- HIGH REFRESH 3840
- NATIONSTAR-SMD-LED
- 5 JAHRE GARANTIE

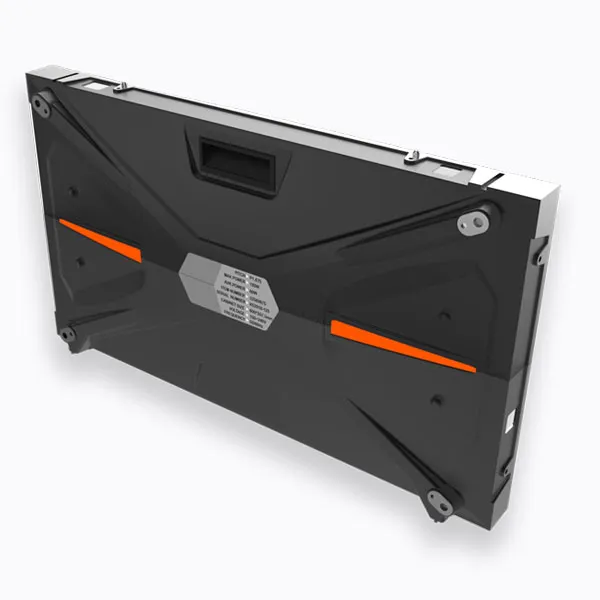

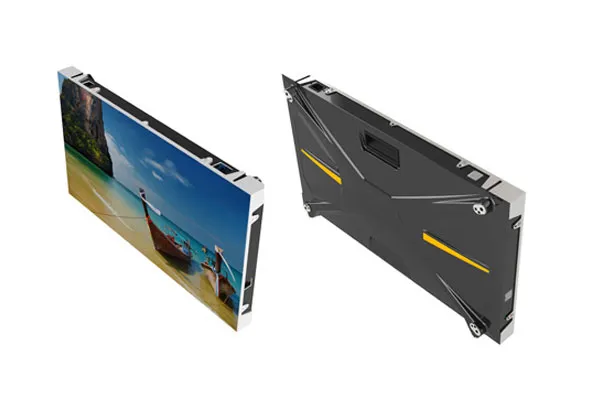

16:9 Cabinet Design
Leeman HD LED Video Wall Display 16:9 LED display with Cabinet’s 16:9 resolution, is specialized for command center. Perfect replacement for LCD display. Die cast aluminum cabinet, guarantee you a flat and seamless screen. Good uniformity. Dot-to-dot correction technology provide you pure image with great gradation.

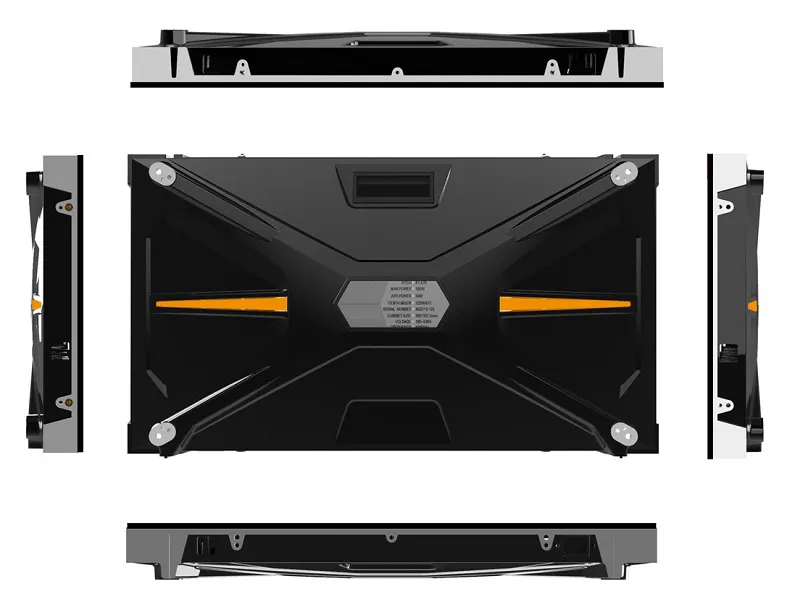

Perfekte Schrankstruktur
Unique Cabinet Design with elegant appearance and human layout, easy installation and maintenance,
angenehm für das Auge mit großem visuellem Erlebnis.

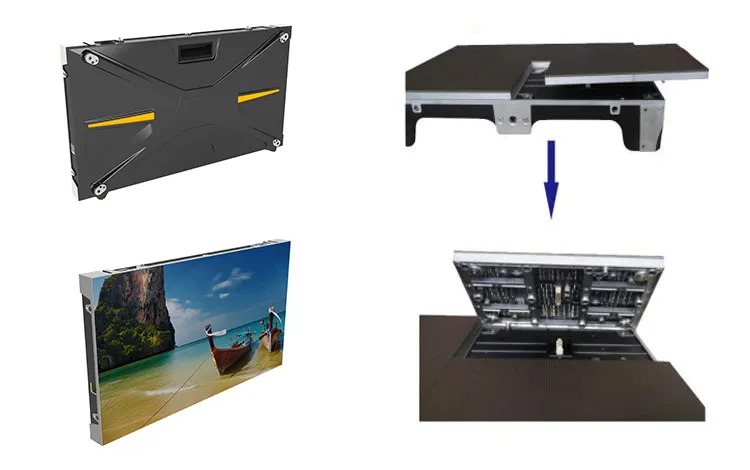

Frontal Service
The front servicealbe Ultra HD LED screen cabinet has fully described the strength of its light weight,
met the needs of small space or where the needs of the cabinet thickness is needed,
enhanced the vision of the space as well as its visionary effect. It allows for easy maintenance, saving time and labor on site.

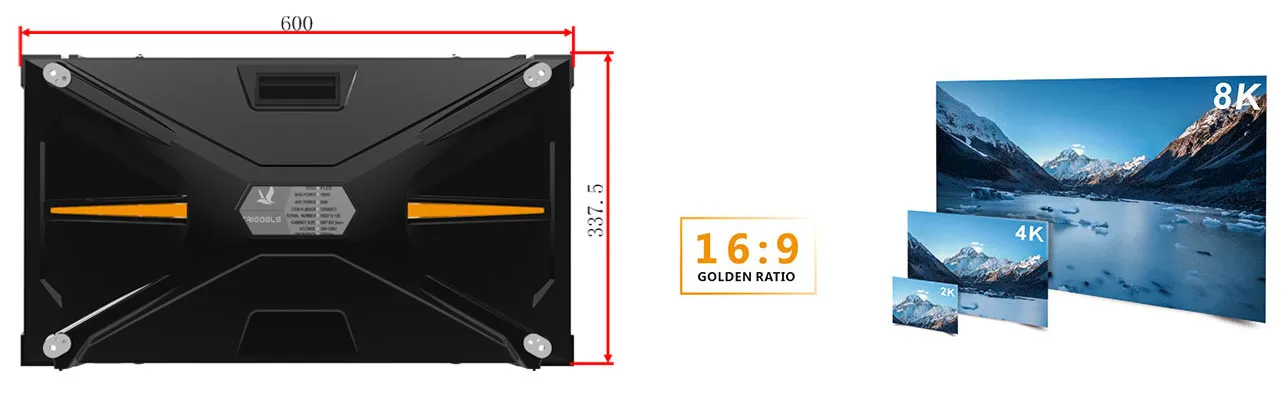

High Definition, Bringing perfect visual experience
HD LED Video Wall Display 16:9 SERIES 600mmX337.5mm With a cabinet ratio 16 : 9, the LED display is bespoke in size, flexible in installation and compatible with all the prevailing video formats,
making it easier to create FHD, 2K, 4K and 8K video wall.

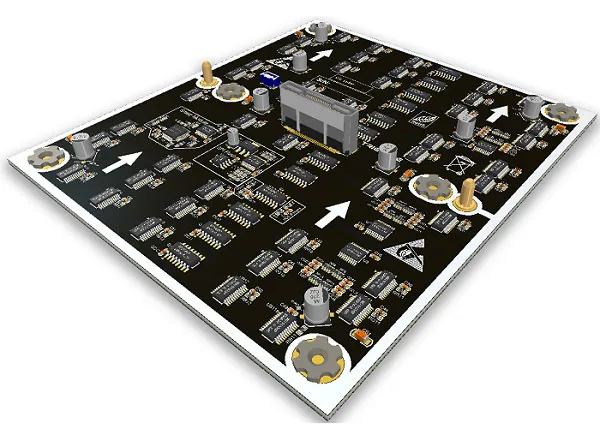

High quality LED Panel
LEEMAN 16:9 ratio LED screen adapts high quality LED panel. Support smart modules, support correcting data storage, Support module temperature detection, Support voltage detection, Support dot to dot correction.

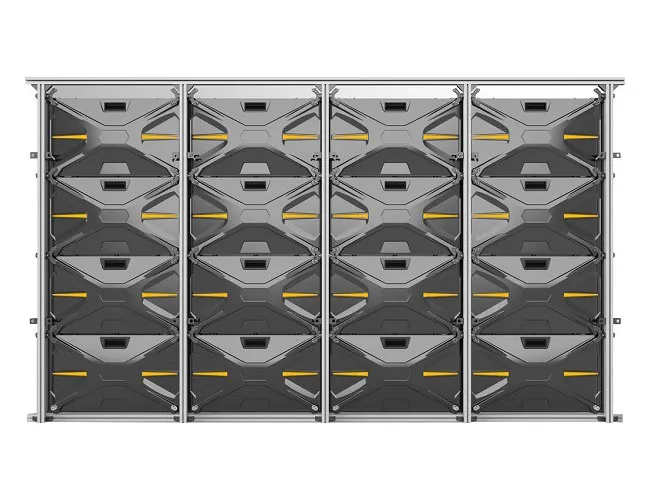

Seamless Splicing
Seamless splicing design with better cabinet connectors, top / down fast locks, and left/ right fast locks, offering the audience excellent visual experience without any gaps and the LED disply with ultra high flatness.
N169 HD LED Display
| ARTIKEL | UNIT | 1.25 | 1.5625 | 1.875 | 2.5 |
|---|---|---|---|---|---|
| LED-Typ | N / A | SMD1010 | SMD1010 | SMD1515 | SMD1515 |
| Pixelabstand | mm | 1.25 | 1.5625 | 1.875 | 2.5 |
| Schutz vor Eindringen | IP | IP54 | |||
| Betrachtungsabstand | Meter | 1.25 | 1.5 | 1.8 | 2.5 |
| Weg scannen | N / A | 1/30 | 1/32 | 1/30 | 1/30 |
| Modulabmessung | mm | 200*168.75 | |||
| Modul Pixel | Pixel | 160×135 | 128×106 | 160×90 | 80×68 |
| Schrankabmessung | mm | 600*337.5*60 | |||
| Kabinettsbeschluss | Pixel | 480*270 | 384*216 | 320*180 | 240*135 |
| Modulwartung | N / A | Vorderseite | |||
| Schrankmaterial | N / A | Die-Casting Aluminum | |||
| Schrankgewicht | KG | 5.4 | |||
| Helligkeit | Nissen | 800~1000 | |||
| Aktualisierungsrate | Hertz | 1920/3840 | |||
| Digitale Verarbeitung | Bit | 14/16 | |||
| Graustufen | Niveau | 16384 | |||
| Farben | Million | 687 | |||
| Farbtemperatur | Grad K | 4.500-8.500 Einstellbar | |||
| Helligkeits Kontrolle | N / A | 255 | |||
| Kontrastverhältnis | N / A | 4000:01:00 | |||
| Betrachtungswinkel H | Grad | 140 | |||
| Betrachtungswinkel V | Grad | 140 | |||
| AC Speration | v | AC90~264 | |||
| Stromverbrauch (Max./Durchschn.) | W/m2 | 800/250 (Schätzung) | |||
| Speichertemp. | F/C | -4 ~ 140F/-20C ~ +60C | |||
| Lagerfeuchtigkeit | RH | 10% ~ 85% | |||
| Betriebstemp. | F/C | -4F ~ 140F/-20C ~ +60 | |||
| Betriebsfeuchtigkeit | RH | 10% ~ 85% | |||
| Liftzeit (50% Helligkeit) | Stunde | 100,000 | |||
| Steuermodus | N / A | Videosynchronisierung |
Produkte
P1.25
160×135 dots/module
480*270 dots/cabinet
600*337.5*60mm Cabinet
P1.5625
128×106 dots/module
384*216 dots/cabinet
600*337.5*60mm Cabinet
P1.25
160×90 dots/module
320*180 dots/cabinet
600*337.5*60mm Cabinet
P2.5
80×68 dots/module
240*135 dots/cabinet
600*337.5*60mm Cabinet
