FIXED

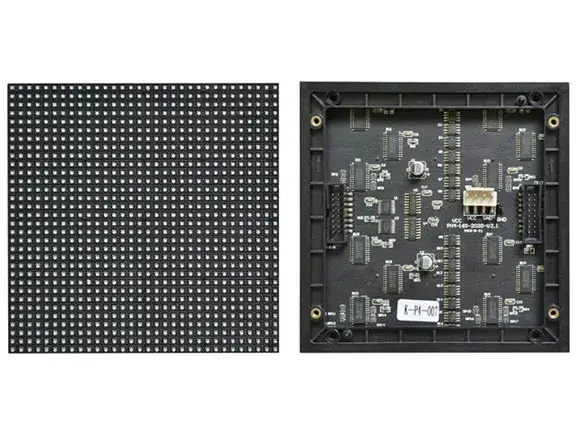

Customized Size Indoor Fixed LED Display
Leeman LED Display Customized Size as customer requirement, Steel or Aluminum cabinet design, High Brightness, Outdoor Fixed Installation LED Display, high flatness, excellent display effect.
- HIGH REFRESH 3840HZ
- NationStar LED
- 5 YEARS WARRANTY

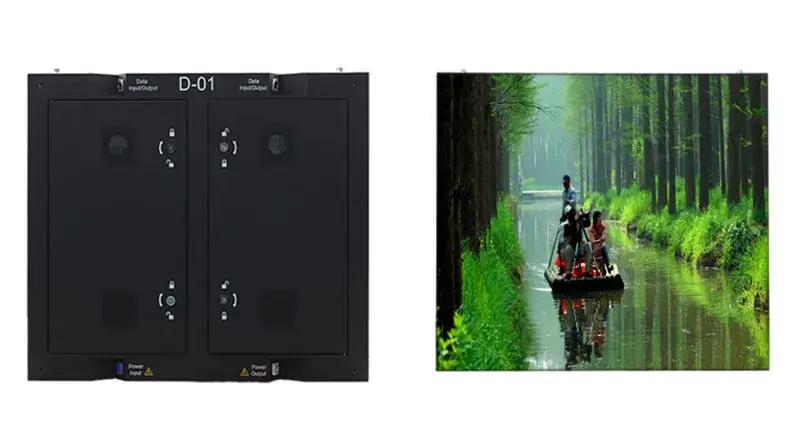

High Brightness, Excellent Image Video
The SMD Encapsulation technology with high brightness makes the LEEMAN Outdoor Fixed LED display
has a Vivid and smoother pictures when in use. To achieve the best visual performance of
outdoor LED display, we use the best driving IC with high refresh rate and high grey level with the latest technologies.
Uniform color, High contrast, Beautiful Picture
As the LEEMAN first standard indoor fixed LED display. its stability not only have obtained customers’s reputation but also have been highly praised and appreciated by other led display manufacturers.

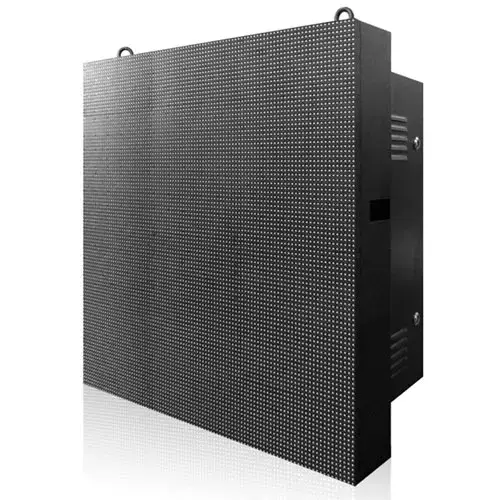

High Efficieny Cooling
With 4 aerofoil fans in each cabinet. LEEMAN indoor fixed Series LED display can cool immediately when in use.

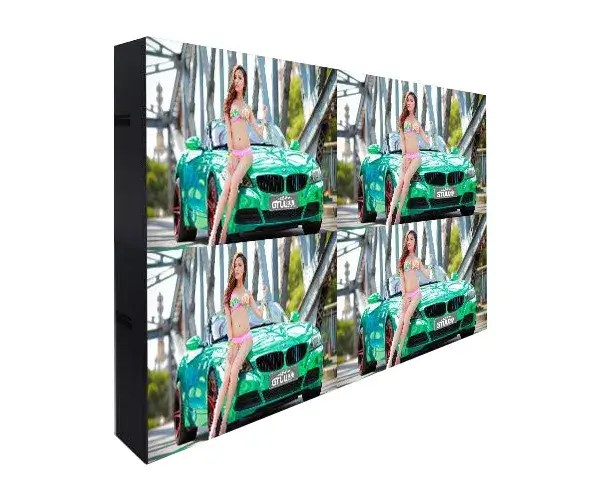

Seamless, No gaps
Fine standard cabinet with no obvious gaps between the cabinets. Non-deformability function keep the screen in a good shape and smoothly..
using dot to dot calibration technology makes the image clearer and the layering stronger.

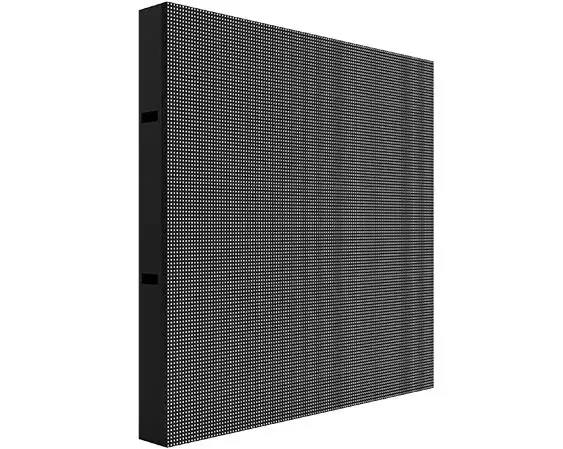

IP65 Protection Level
All-weather for outdoor environment. With LEEMAN unique protection technology to make the display reache the level of IP65,
can work normally in any weather condition! High protection grade of IP65 guarantees, durability, reliability, Anti-ultraviolet and steady.
Dustproof, Waterproof and Corrosion Resistant

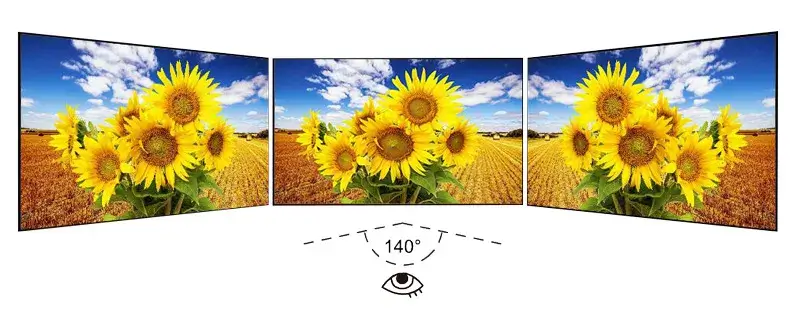

Super Wide Viewing Angle
Support fixed installation for advertisement, adding flying bar, connectiors and fast lock for rental installation,
adding rubber sushion and bracket for perimeter installation LED display
Indoor Fixed LED Display
| ITEM | ليمان | P2mm | P3mm | P4mm | P5mm | P6mm | P10mm |
|---|---|---|---|---|---|---|---|
| نوع الصمام | N/A | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD3528 | SMD3528 |
| مساحة وحدة الصورة | mm | 2 | 3 | 4 | 5 | 6 | 10 |
| Ingress Protection | IP | IP54 | |||||
| Viewing Distance | meter | 2 | 3 | 4 | 5 | 6 | 10 |
| Scan Way | N/A | 1/40 | 1/32 | 1/16 | 1/16 | 1/16 | 1/4 |
| Module Dimension | mm | 256*128 | 192*192 | 256*128 | 320*160 | 192*192 | 320*160 |
| Module Pixel | Pixel | 128×64 | 64×64 | 64×32 | 64×32 | 32×32 | 32×16 |
| Cabinet Dimension | mm | Customized Size | |||||
| قرار مجلس الوزراء | Pixel | Depend on the size of Cabinet | |||||
| Module Maintenance | N/A | Front or Rear | |||||
| مواد مجلس الوزراء | N/A | Steel or aluminum | |||||
| وزن الخزانة | KG | 50kg/m2 | |||||
| سطوع | Nits | 800~1000 | |||||
| Refresh rate | Hz | 1920/3840 | |||||
| Digital Processing | Bit | 14/16 | |||||
| مقياس رمادي | Level | 16384 | |||||
| Colors | Million | 687 | |||||
| Color Temperature | Deg.K | 4,500-8,500 Adjustable | |||||
| Brightness Control | N/A | 255 | |||||
| نسبة التباين | N/A | 4000:01:00 | |||||
| Viewing Angle H | Deg. | 140 | |||||
| Viewing Angle V | Deg. | 140 | |||||
| AC Speration | V | AC90~264 | |||||
| Power Consumption(Max/Avg) | W/m2 | 800/250 ( Estimate ) | |||||
| Storage Tem. | F/C | -4 ~ 140F/-20C ~ +60C | |||||
| Storage Humidity | RH | 10% ~ 85% | |||||
| Operating Tem. | F/C | -4F ~ 140F/-20C ~ +60 | |||||
| رطوبة العملية | RH | 10% ~ 85% | |||||
| Lift time(50% brightness) | Hour | 100,000 | |||||
| Control Mode | N/A | Video Sync |
منتجات
P3
64×64 dots/module
192*192mm/module
Customized Size
P6.67
48×32 dots/module
320*160mm/module
Customized Size
P4
64×32 dots/module
256*128mm/module
Customized Size
ص 10
32×16 dots/module
320*160mm/module
Customized Size
P5
64×32 dots/module
320*160mm/module
Customized Size
P3.91
64×64 dots/module
250*250mm/module
Customized Size
P6
32×32 dots/module
192*192mm/module
Customized Size
P4.81
52×52 dots/module
250*250mm/module
Customized Size
